V300A12C500B

DC-DC Converter Module, -0.5 to +375 Vdc, 100ms

Rated 5 Rating 5 | reviews | Write a review

Price:: US $90.00~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $90.00~100.00

PartNumber:: V300A12C500B

Brand:: Vicor Corporation - Vicor | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CoCo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-13

From Other Seller

Part Number:V300A12C500B
US $90.00 - 100.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

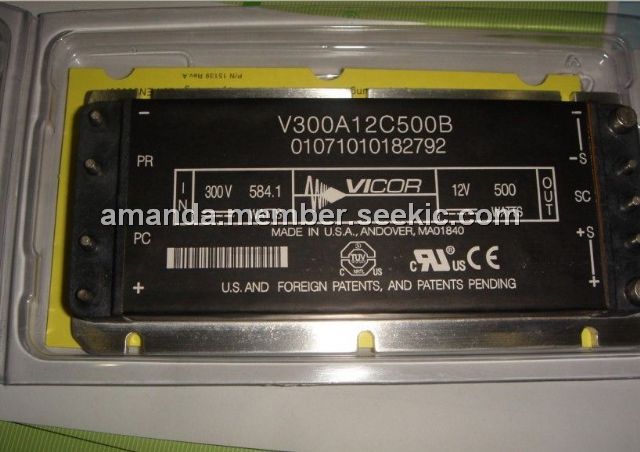

The V300A12C500B is a DC-DC converter module. The V300A12C500B uses 2nd Generation power processing, control and packaging technologies to provide the performance, flexibility and cost effectiveness expected of a mature power component. For example, a plated-cavity core transformer couples widely separated primary and secondary windings, resulting in low in-toout parasitic capacitance and noise. High frequency ZCS/ZVS switching, advanced power semiconductor packaging and thermal management provide high power density with low temperature gradients. Extensive use of silicon integration results in 1/3 the part count of a 1st Generation converter.

Parametrics

V300A12C500B absolute maximum ratings: (1)+In to –In voltage: -0.5 to +375 Vdc; (2)+In to –In voltage: 400 Vdc <100ms; (3)PC to –In voltage: -0.5 to +7.0 Vdc; (4)PR to –In voltage: -0.5 to +7.0 Vdc; (5)+Out to –Out voltage: -0.5 to +16.1 Vdc; (6)+Sense to –Out voltage: -0.5 to +16.1 Vdc; (7)–Sense to –Out voltage: 1.0 Vdc; (8)SC to –Out voltage: -0.5 to +1.5 Vdc; (9)Isolation voltage (in to out): 3000 Vrms; (10)Isolation voltage (in to base): 1550 Vrms; (11)Isolation voltage (out to base): 500 Vrms; (12)Storage temperature (C–Grade): -40 to +125℃; (13)Operating temperature (C–Grade): -20 to +100℃ Baseplate; (14)Pin soldering temperature: 260℃; (15)Pin soldering temperature: 390℃; (16)Mounting torque: 0.57N-m.

Features

V300A12C500B features: (1)DC input range: 180 - 375V; (2)Input surge withstand: 400V for 100ms; (3)DC output: 12V; (4)Programmable output: 10 to 110%; (5)Regulation: ±0.2% no load to full load; (6)Efficiency: 86%; (7)Maximum operating temperature: 100℃ at full load; (8)Power density: 99W/cubic inch; (9)Height above board: 0.43 in. (10,9 mm); (10)Parallelable, with N+M fault tolerance; (11)Low noise ZCS/ZVS architecture.
