Product Summary

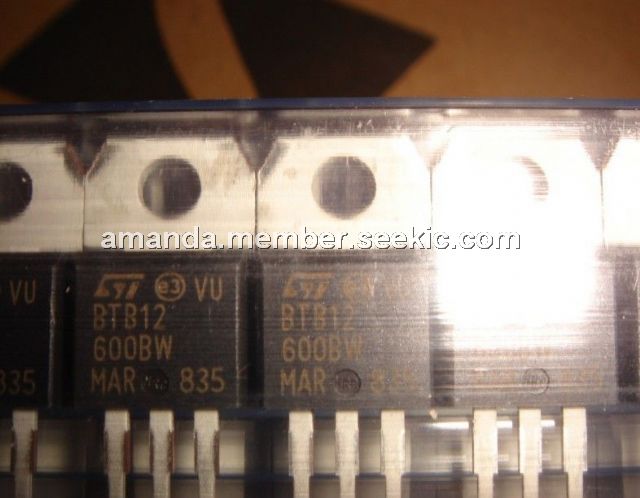

The BTB12-600BW is a TRIAC. It is suitable for general purpose AC switching. The device can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits and so on.
Parametrics
Absolute maximum ratings: (1)Critical rate of rise of on-state current IG=2xIGT , tr≤100ns:50A/μs; (2)Non repetitive surge peak off-state voltage:VDRM/VRRM+100V; (3)Peak gate current:4 A; (4)Average gate power dissipation:1 W; (5)Storage junction temperature range:- 40℃ to + 150℃; (6)Operating junction temperature range:- 40℃ to + 125℃.
Features
Features: (1)IT(RMS):12 A; (2)VDRM/VRRM:600 and 800 V; (3)IGT (Q1):5 to 50 mA.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BTB12-600BW3G |
ON Semiconductor |
Triacs 12A TRIAC 50mA IGT |
Data Sheet |
|
|
||||||||||||
 |
BTB12-600BWRG |
STMicroelectronics |
Triacs 12 Amp 600 Volt |
Data Sheet |
|
|
||||||||||||
