Product Summary

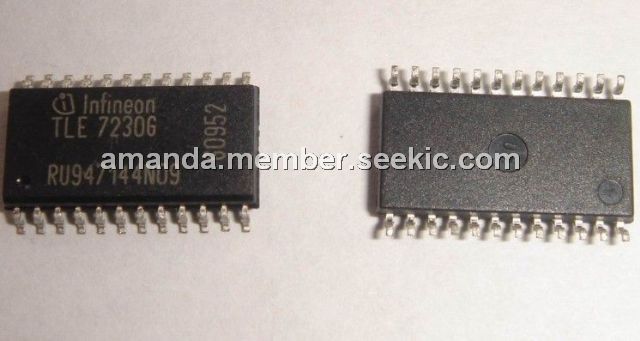

The TLE7230G is a Smart Octal Low-Side Switch. It is protected by embedded protection functions and designed for automotive applications.
Parametrics
Absolute maximum ratings: (1)Supply Voltage:-0.3V to +6V ; (2)Continuous Drain Source Voltage (OUT1 to OUT8):48V ; (3)Input Voltage, All Inputs and Data Lines:-0.3V to +6V ; (4)Operating Temperature Range:-40℃ to +150℃; (5)Storage Temperature Range:-55℃ to +150℃.
Features
Features: (1)Low Quiescent Current< 10μA ; (2)16 bit SPI (for Daisychain) ; (3)Direct Parallel Control of Four Channels ; (4)PWM input (demux) ; (5)Parallel Inputs High or Low Active Programmable ; (6)General Fault Flag ; (7)Digital Ports Compatible to 5V and 3,3 V Micro Controllers ; (8)Electostatic Discharge (ESD) Protection ; (9)Full reverse current capability without latchup or loss of function.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TLE7230G |
Infineon Technologies |
Power Switch ICs - Power Distribution 8 CH LW-Side Switch |
Data Sheet |
|
|
|||||||||||||
TLE7230GS |
Infineon Technologies |
Power Driver ICs SPI DRVR Enhanced Relay CTRL |
Data Sheet |
Negotiable |
|
