Product Summary

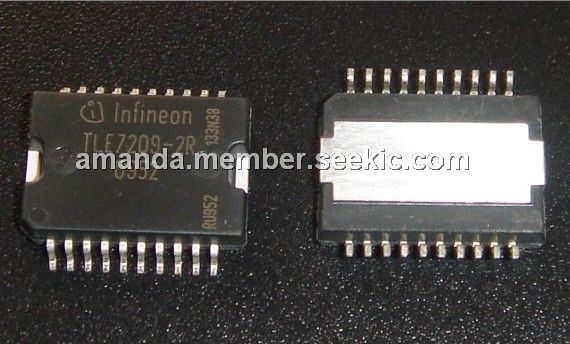

The TLE7209-2R is a 7 A H-bridege. It is designed for DC-motor applications.
Parametrics
Absolute maximum ratings: (1)Storage temperature, Ts: -55 to +125℃; (2)Ambient temperature, Ta: -40 to +125℃; (3)Voltage at logic input CSN, V: -0.5 to 40 V; (4)Voltage at logic input DMS: VDMS: -0.5 to 13V; (5)Voltage at logic output SDO, V: -0.5 to VDMS+0.5V; (6)Voltage at VsCP, VCP: VS -0.5 to VS +0.5V.
Features
Features: (1)Operating supply voltage 5 V to 28 V; (2)Typical RDSon = 150mΩ for each output transistor (at 25℃); (3)Continuous DC load current 5 A (TC < 100℃); (4)Output current limitation at typ. 6.6 A ?1.1 A; (5)Short circuit shut-down for output currents over 8 A; (6)Logic- inputs TTL/CMOS-compatible; (7)Output switching frequency up to 30 kHz; (8)Rise and fall times optimized for 0.5-2 kHz; (9)Over-temperature protection; (10)Short circuit protection; (11)Undervoltage disable function; (12)Diagnostic by SPI or Status-Flag (configurable); (13)Enable and Disable inputs; (14)P-DSO-20-12 power package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE7209-2R |
Infineon Technologies |
Motor / Motion / Ignition Controllers & Drivers 7A H-Bridge 150mA DC-MOTORAPPS |
Data Sheet |
Negotiable |
|
||||||||||||
