Product Summary
The TA48M033F is a three-terminal voltage regulator. It consists of fixed-positive-output, low dropout regulators with an output current of 500mA.
Parametrics
TA48M033F absolute maximum ratings: (1)Input voltage, VIN: 29V; (2)Output current, IOUT: 0.5A; (3)Power dissipation PD: 1/10W; (4)Operating temperature, Topr: -40 to 85℃; (5)Storage temperature, Tstg: -55 to 150℃; (6)Junction temperature, Tj: 150℃.
Features
TA48M033F features: (1)Maximum output current of 0.5A; (2)Low standby current: 0.8mA; (3)Low dropout voltage: 0.65V; (4)Protection function; (5)PW-Mold package.

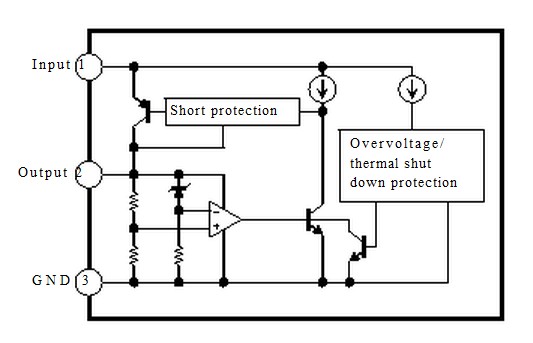

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TA48M033F(T6L1,SNQ |
Toshiba |
Low Dropout (LDO) Regulators 0.5A New PW-Mold |
Data Sheet |
|
|
||||||||||||
|
TA48M033F(TE16L,SQ |
Toshiba |
Low Dropout (LDO) Regulators VReg LDO OC drooping TS In=29V Out=3.3V |
Data Sheet |
Negotiable |
|
||||||||||||
