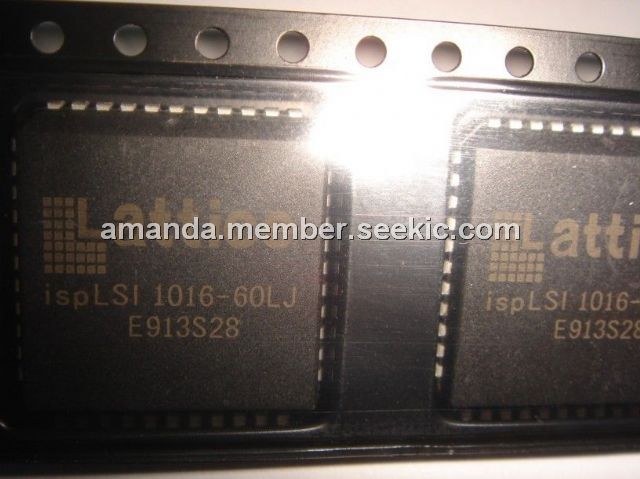

Product Summary
The ISPLSI1016-60LJ is a High-Density Programmable Logic Device containing 96 Registers, 32 Universal I/O pins, four Dedicated Input pins, three Dedicated Clock Input pins and a Global Routing Pool (GRP). The GRP provides complete interconnectivity between all of these elements. The ISPLSI1016-60LJ features 5-Volt in-system programming and in-system diagnostic capabilities. It is the first device which offers non-volatile reprogrammability of the logic, as well as the interconnect to provide truly reconfigurable systems.
Parametrics
Absolute maximum ratings: (1)Supply Voltage Vcc: -0.5 to +7.0V; (2)Input Voltage Applied: -2.5 to VCC +1.0V; (3)Off-State Output Voltage Applied: -2.5 to VCC +1.0V; (4)Storage Temperature: -65 to 150℃; (5)Case Temp. with Power Applied: -55 to 125℃; (6)Max. Junction Temp. (TJ) with Power Applied: 150℃.
Features
Features:(1)HIGH-DENSITY PROGRAMMABLE LOGIC; (2)High-Speed Global Interconnect; (3)2000 PLD Gates; (4)32 I/O Pins, Four Dedicated Inputs; (5)96 Registers; (6)Wide Input Gating for Fast Counters, State Machines, Address Decoders, etc.; (7)Small Logic Block Size for Random Logic; (8)Security Cell Prevents Unauthorized Copying; (9)HIGH PERFORMANCE E2CMOSTECHNOLOGY; (10)fmax = 110 MHz Maximum Operating Frequency; (11)fmax = 60 MHz for Industrial and Military/883 Devices; (12)tpd = 10 ns Propagation Delay; (13)TTL Compatible Inputs and Outputs; (14)Electrically Erasable and Reprogrammable; (15)Non-Volatile E2CMOS Technology; (16)100% Tested; (17)IN-SYSTEM PROGRAMMABLE.

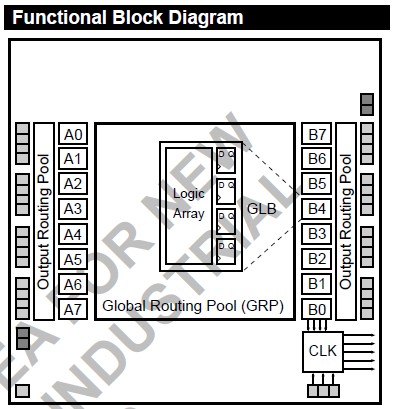

Diagrams
 |
