Product Summary
The TL074CN is a low-noise JFET-input operational amplifier. It is suited for high-fidelity and audio preamplifier applications.
Parametrics
Absolute maximum ratings: (1)Supply voltage: VCC+: 18V; VCC: 18V; (2)Differential input voltage, VID: ±30V; (3)Input voltage, VI: ±15V; (4)Operating virtual junction temperature, TJ: 150℃; (5)Case temperature for 60 seconds: FK package: 260℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: J, JG, or W package: 300℃; (7)Storage temperature range, Tstg: 65℃ to 150℃.
Features
Features: (1)Low Power Consumption; (2)Wide Common-Mode and Differential Voltage Ranges; (3)Low Input Bias and Offset Currents; (4)Output Short-Circuit Protection; (5)Low Total Harmonic Distortion: 0.003% Typ; (6)Low Noise; (7)High Input Impedance; (8)Internal Frequency Compensation; (9)Latch-Up-Free Operation; (10)High Slew Rate; (11)Common-Mode Input Voltage Range; (12)Includes VCC+.

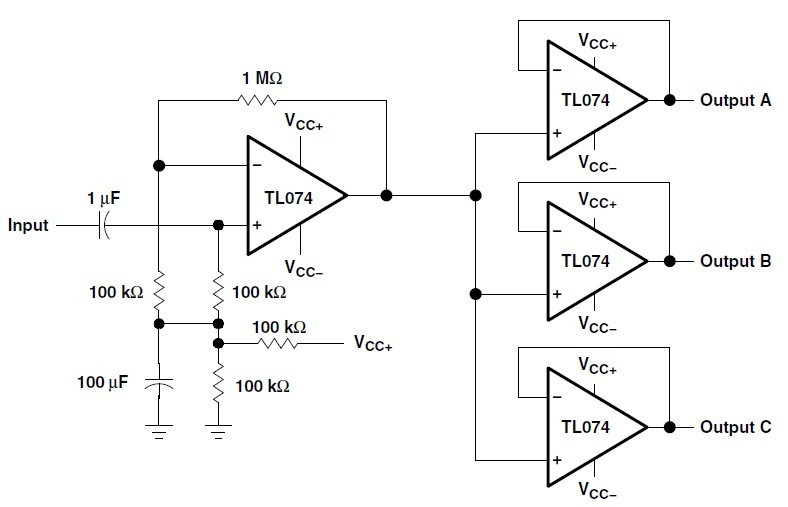

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TL074CN |
STMicroelectronics |
Operational Amplifiers - Op Amps Quad Low Noise JFET |
Data Sheet |
|
|
|||||||||||||
TL074CNE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad Low-Noise JFET-Input |
Data Sheet |
|
|
|||||||||||||
TL074CNSRE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad Low-Noise JFET-Input |
Data Sheet |
|
|
|||||||||||||
TL074CNSRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Quad Lo-Noise JFET- Inp Gen-Purp Op Amp |
Data Sheet |
|
|
|||||||||||||
TL074CNSR |
Texas Instruments |
Operational Amplifiers - Op Amps Quad Low-Noise JFET-Input |
Data Sheet |
|
|
