Product Summary

The SMF05C.TCT is TVS diode array which is designed to protect sensitive electronics from damage or latch-up due to ESD and other voltage-induced transient events. It is designed for use in applications where board space is at a premium. It is an unidirectional device and may be used on lines where the signal polarities are above ground. The applications of the SMF05C.TCT include: (1)Cellular Handsets and Accessories; (2)Cordless Phones; (3)Personal Digital Assistants (PDA); (4)Notebooks and Handhelds; (5)Portable Instrumentation; (6)Digital Cameras; (7)Peripherals; (8)MP3 Players.

Parametrics

SMF05C.TCT absolute maximum ratings: (1)Peak Pulse Power (tp = 8/20μs) Ppk: 100 Watts; (2)Peak Pulse Current (tp = 8/20μs) IPP: 8 A; (3)ESD per IEC 61000-4-2 (Air) VESD: 20 kV; (4)ESD per IEC 61000-4-2 (Contact) VESD: 15 kV; (5)Lead Soldering Temperature TL: 260 (10 seconds) ℃; (6)Operating Temperature TJ: -55 to +125 ℃; (7)Storage Temperature T STG: -55 to +150 ℃.

Features

SMF05C.TCT features: (1)ESD protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact); IEC 61000-4-4 (EFT) 40A (5/50ns); (2)Small package for use in portable electronics; (3)Protects five I/O lines; (4)Working voltage: 5V; (5)Low leakage current; (6)Low operating and clamping voltages; (7)Solid-state silicon-avalanche technology.

Diagrams

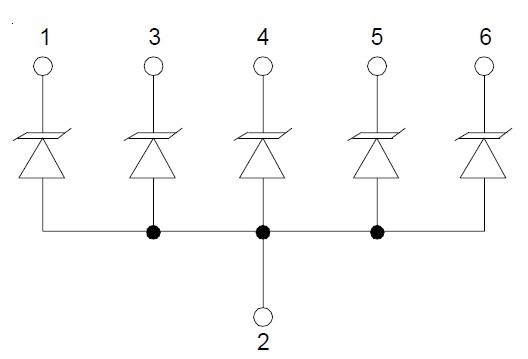

SMF05C.TCT circuit diagram
