Product Summary

The PESD3V3L1BA is a Low capacitance bidirectional ESD protection diode in SOD323. It is designed to protect one signal line from the damage caused by ESD and other transients.

Parametrics

Absolute maximum ratings: (1)reverse stand-off voltage:3.3V; (2)diode capacitance:101pF; (3)peak pulse power:500W; (4)peak pulse current:18A; (5)junction temperature:150℃; (6)ambient temperature:-65℃ to +150℃; (7)storage temperature:-65℃ to +150℃; (8)electrostatic discharge capability:30kV.

Features

Features: (1)Bidirectional ESD protection of one line ; (2)ESD protection > 23kV; (3)Max. peak pulse power: Ppp = 500W ; (4)IEC 61000-4-2, level 4 (ESD); (5)Low clamping voltage: V(CL)R = 26 V ; (6)IEC 61000-4-5 (surge); Ipp = 18 A; (7)Ultra low leakage current: IRM < 0.09 μA ; (8)Very small SMD plastic package.

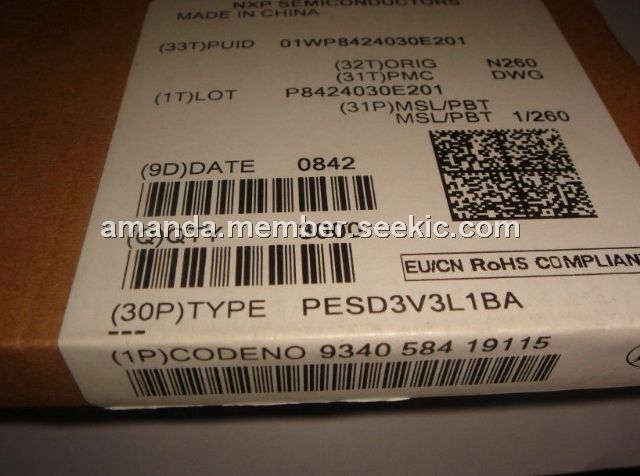

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PESD3V3L1BA,115
PESD3V3L1BA,115

NXP Semiconductors

TVS Diodes - Transient Voltage Suppressors 3.3V BIDIRECTION ESD

Data Sheet

0-1: $0.06
1-25: $0.06
25-100: $0.05
100-250: $0.05
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PESD0402-060
PESD0402-060


ESD PROTECTOR 0402 6VDC POLYMER

Data Sheet

Negotiable
PESD0402-140
PESD0402-140

TE Connectivity / Raychem

ESD Suppressors SMT 0402 PKG 14VDC PESD PROTECTOR

Data Sheet

0-1: $0.10
1-10: $0.10
10-100: $0.09
100-500: $0.07
PESD0603-140
PESD0603-140


ESD PROTECTOR 0603 14VDC POLYMER

Data Sheet

Negotiable
PESD0603-240
PESD0603-240

TE Connectivity / Raychem

ESD Suppressors SMT 0603 PKG 24VDC PESD PROTECTOR

Data Sheet

0-1: $0.10
1-10: $0.08
10-100: $0.08
100-500: $0.06
PESD1206Q-140
PESD1206Q-140

TE Connectivity / Raychem

ESD Suppressors Surface Mount 1206 14V

Data Sheet

Negotiable
PESD1206Q-240
PESD1206Q-240

TE Connectivity / Raychem

ESD Suppressors SMT 1206 PKG 24VDC PESD PROTECTOR

Data Sheet

0-1: $0.30
1-10: $0.27
10-100: $0.25
100-250: $0.22
