Product Summary

The BTS452R is a N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions. The applications of the BTS452R include All types of resistive, inductive and capacitive loads, compatible power switch for 12 V, 24 V and 42 V DC applications and Replaces electromechanical relays and discrete circuits.

Parametrics

BTS452R absolute maximum ratings: (1)Supply voltage, Vbb: 52 V; (2)Supply voltage for full short circuit protection, Vbb(SC): 50V; (3)Continuous input voltage, VIN: -10 to +16V; (4)Load current (Short - circuit current), IL: self limited A; (5)Current through input pin (DC), IIN: ± 5 mA; (6)Operating temperature, Tj: -40 to+150℃; (7)Storage temperature, Tstg: -55 to +150℃; (8)Power dissipation, Ptot: 41.6 W; (9)Inductive load switch-off energy dissipation single pulse, Tj =150℃, IL = 1 A, EAS: 150 mJ.

Features

BTS452R features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Thermal shutdown with restart; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection with external resistor; (8)Open drain diagnostic output for overtemperature and short circuit; (9)Open load detection in OFF - State with external resistor; (10)CMOS compatible input; (11)Loss of GND and loss of Vbb protection; (12)ESD - Protection; (13)Very low standby current.

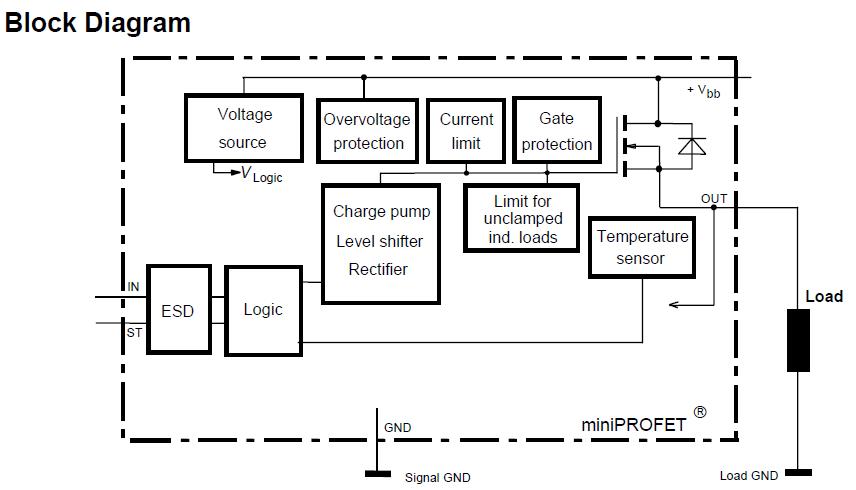

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

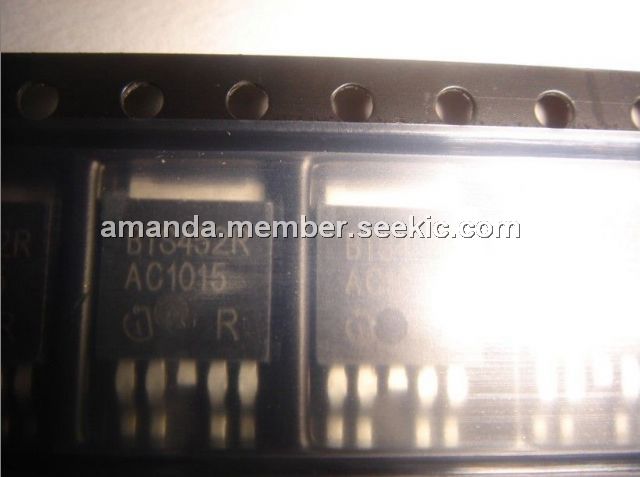

BTS452R
BTS452R
Infineon Technologies
Power Switch ICs - Power Distribution Smart High Side MINI-PROFET
Data Sheet
0-1: $1.34
1-10: $1.15
10-100: $0.94
100-500: $0.73
BTS452R 75
BTS452R 75
Infineon Technologies
Power Switch ICs - Power Distribution Smart High Side MINI-PROFET
Data Sheet
Negotiable
