Product Summary
The LM324DR consists of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation of the LM324DR from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2902), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain of the LM324DR is independent of the magnitude of the supply voltage.
Parametrics
LM324DR absolute maximum ratings: (1)Operating virtual junction temperature, TJ 150 ℃; (2)Case temperature for 60 seconds FK package 260 ℃; (3)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds J or W package 300 ℃; (4)Storage temperature range, Tstg -65 to 150 ℃; (5)Supply voltage, VCC ±13 or 26V; (6)Differential input voltage, VID ±26V; (7)Input voltage, VI -0.3 to 26V.
Features
LM324DR features: (1)Wide Supply Ranges; (2)Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA Typ; (3)Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground; (4)Low Input Bias and Offset Parameters; (5)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V; (6)Open-Loop Differential Voltage Amplification: 100 V/mV Typ; (7)Internal Frequency Compensation.

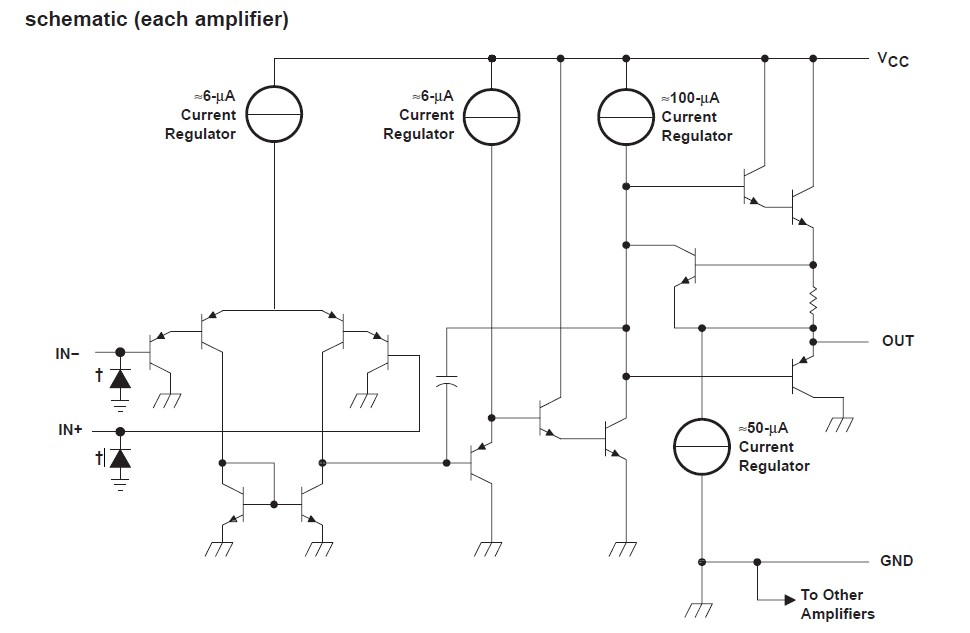

Diagrams
