Product Summary
The 74HC595D is a high-speed Si-gateCMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HC595D is an 8-stage serial shift register with a storage register and 3-state outputs. The shift register and storage register have separate clocks. The applications of the 74HC595D include Serial-to-parallel data conversion, Remote control holding register.
Parametrics
74HC595D absolute maximum ratings: (1)supply voltage: 2.0 to 6.0 V; (2)input voltage: 0 to VCC V; (3)output voltage: 0 to VCC V; (4)ambient temperature: -40 to +125 ℃; (5)tr, tf input rise and fall time: 1000 ns max at VCC = 2.0 V, 6.0 ns typ and 500 ns max at VCC = 4.5 V, 400 ns max at VCC = 6.0 V.
Features
74HC595D features: (1)8-bit serial input; (2)8-bit serial or parallel output; (3)Storage register with 3-state outputs; (4)Shift register with direct clear; (5)100 MHz (typical) shift out frequency; (6)ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V, MM EIA/JESD22-A115-A exceeds 200 V.

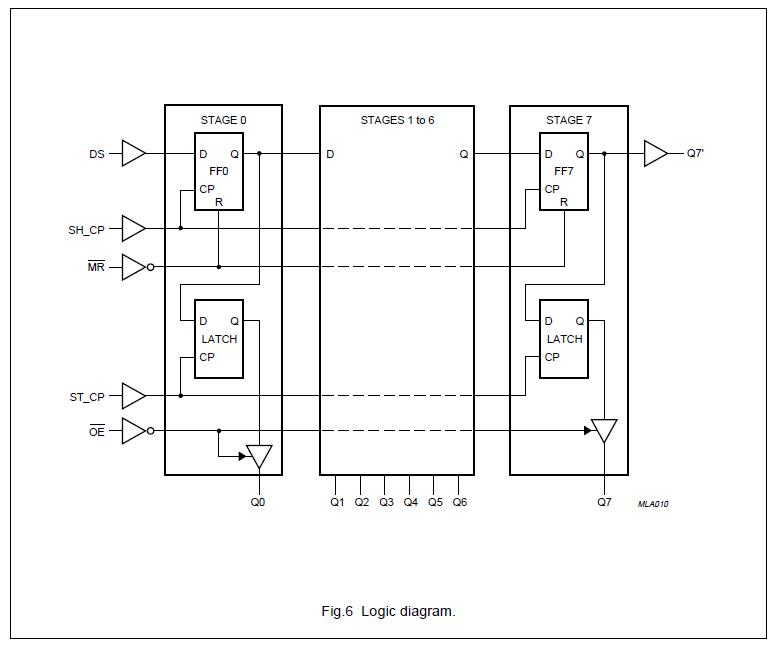

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HC595D |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HC595D,112 |
NXP Semiconductors |
Counter Shift Registers 8BIT SHIFT REGISTER W/OUTPUT LATCH |
Data Sheet |
|
|
||||||||||||
|
74HC595D,118 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SHIFT REG W/OUTPUT LATCH |
Data Sheet |
|
|
||||||||||||
|
74HC595DB,118 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SHIFT REG |
Data Sheet |
|
|
||||||||||||
|
74HC595DB,112 |
NXP Semiconductors |
Counter Shift Registers 8-BIT SHIFT REGISTER |
Data Sheet |
|
|
||||||||||||
|
74HC595DB |
NXP Semiconductors |
Counter Shift Registers 8-BIT SHIFT REGISTER |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74HC595DTR2G |
ON Semiconductor |
Counter Shift Registers SHIFT RGSTR 3-STATE |
Data Sheet |
|
|
||||||||||||
 |
74HC595DR2G |
ON Semiconductor |
Counter Shift Registers SHIFT RGSTR 3-STATE |
Data Sheet |
|
|
||||||||||||
