Product Summary
The HSMS-2825-TR1G is a RF Schottky Barrier. It is specifcally designed for both analog and digital applications. The HSMS-2825-TR1G offers a wide range of specifcations and package confgurations to give the designer wide fexibility. Typical applications of the device is mixing, detecting, switching, sampling, clamping, and wave shaping. The HSMS-2825-TR1G is the best all-around choice for most applications, featuring low series resistance, low forward voltage at all current levels and good RF characteristics.
Parametrics
HSMS-2825-TR1G absolute maximum ratings: (1)Forward Current(1 μs Pulse):1Amp; (2)Peak Inverse Voltage:15V ; (3)Junction Temperature:150℃; (4)Storage Temperature:-65℃ to 150℃; (5)Thermal Resistance:500℃/W.
Features
HSMS-2825-TR1G features: (1)Low Turn-On Voltage (As Low as 0.34 V at 1 mA); (2)Low FIT (Failure in Time) Rate; (3)Six-sigma Quality Level; (4)Single, Dual and Quad Versions; (5)Unique Confgurations in Surface Mount SOT-363 Package:increase fexibility, save board space, reduce cost; (6)HSMS-282K Grounded Center Leads Provide up to 10dB Higher Isolation; (7)Matched Diodes for Consistent Performance; (8)Better Thermal Conductivity for Higher Power Dissipation ; (9)Lead-free Option Available; (10)For more information see the Surface Mount Schottky Reliability Data Sheet.

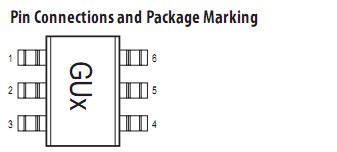

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() HSMS-2825-TR1G |
![]() Avago Technologies |
![]() Schottky (Diodes & Rectifiers) 15 VBR 1 pF |
![]() Data Sheet |
![]()
|
|
||||||||||||
