Product Summary

The TAJD476M016RNJ is a standard tantalum.

Parametrics

TAJD476M016RNJ maximum ratings: (1)Voltage Rating: 16 Volts; (2)ESR: 0.8 Ohms; (3)Tolerance: 20 %; (4)Operating Temperature Range: - 55 C to + 125 C; (5)Package / Case: 2917 (7343-31 metric); (6)Dimensions: 4.3 mm W x 7.3 mm L; (7)Height: 2.9 mm; (8)Series: TAJ; (9)Mfr Case Code: D Case; (10)Product: Tantalum Solid Standard Grade - Other Various; (11)Packaging: Reel; (12)Dissipation Factor DF: 6; (13)Leakage Current: 7.5 uAmps.

Features

TAJD476M016RNJ features: (1)Category Capacitors; (2)Capacitance 47μF; (3)Tolerance ±20%; (4)Features General Purpose; (5)Lead Spacing; (6)ESR (Equivalent Series Resistance) 800.0 mOhm; (7)Lifetime @ Temp; (8)Mounting Type Surface Mount; (9)Type Molded; (10)Package / Case 2917 (7343 Metric); (11)Packaging Cut Tape (CT); (12)Lead Free Status Lead Free; (13)RoHS Status RoHS Compliant.

Diagrams

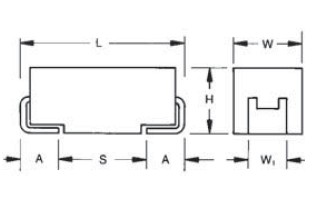

TAJD476M016RNJ simplified circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

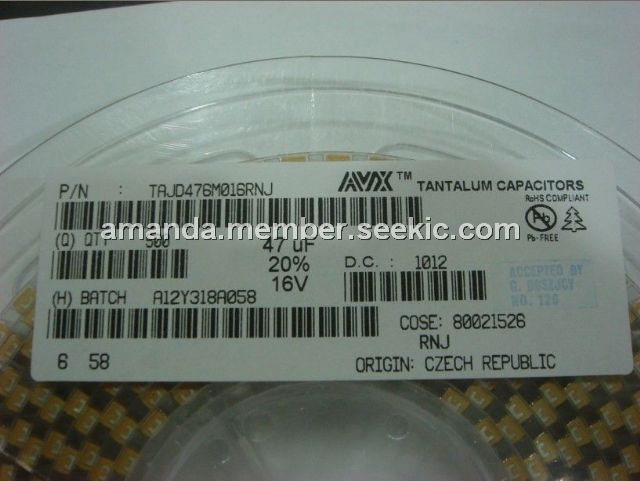

TAJD476M016RNJ
TAJD476M016RNJ
AVX
Tantalum Capacitors - Solid SMD 16volts 47uF 20%
Data Sheet
0-1: $0.50
1-100: $0.31
100-200: $0.26
200-500: $0.25
TAJD476M016RNJV
TAJD476M016RNJV
AVX
Tantalum Capacitors - Solid SMD 16volts 47uF 20%
Data Sheet
0-1: $0.50
1-100: $0.37
100-200: $0.36
200-500: $0.34
