Product Summary

The PIC16F870-I/SS is an 8-Bit CMOS FLASH Microcontroller. It comes in a 28-pin package.

Parametrics

Absolute maximum ratings: (1)Ambient temperature under bias:-55℃ to +125℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4):-0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS:-0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS:0V to +13.25V; (6)Voltage on RA4 with respect to Vss:0V to +8.5V; (7)Total power dissipation:1.0W; (8)Maximum current out of VSS pin:300mA; (9)Maximum current into VDD pin:250mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD):± 20mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD):± 20mA; (12)Maximum output current sunk by any I/O pin:25mA; (13)Maximum output current sourced by any I/O pin:25mA; (14)Maximum current sunk by PORTA, PORTB, and PORTE(combined):200mA; (15)Maximum current sourced by PORTA, PORTB, and PORTE(combined):200mA; (16)Maximum current sunk by PORTC and PORTD (combined):200mA; (17)Maximum current sourced by PORTC and PORTD (combined):200mA.

Features

Features: (1)Pinout compatible to the PIC16CXXX 28 and 40-pin devices; (2)Interrupt capability (up to 11 sources); (3)Eight level deep hardware stack; (4)Direct, indirect and relative addressing modes; (5)Power-on Reset (POR); (6)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST) ; (7)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (8)Programmable code-protection; (9)Power saving SLEEP mode; (10)Selectable oscillator options; (11)Low-power, high-speed CMOS FLASH/EEPROM technology; (12)Fully static design; (13)In-Circuit Serial Programming (ICSP) via two pins; (14)Single 5V In-Circuit Serial Programming capability; (15)In-Circuit Debugging via two pins; (16)Processor read/write access to program memory; (17)Wide operating voltage range: 2.0V to 5.5V; (18)High Sink/Source Current: 25 mA; (19)Commercial and Industrial temperature ranges.

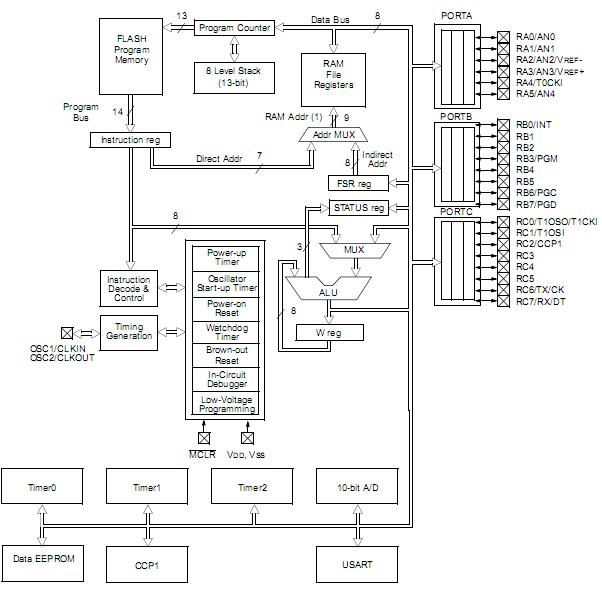

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F870-I/SS
PIC16F870-I/SS

Microchip Technology

8-bit Microcontrollers (MCU) 3.5KB 128 RAM 22 I/O

Data Sheet

0-1: $2.30
1-10: $1.84
10-25: $1.79
25-100: $1.74
