The DS1848B-010 Dual Temperature-Controlled Nonvolatile (NV) Variable Resistor consists of two 256-position linear, variable resistors. The DS1848B-010 consists of two 10kΩ resistors; it incorporates a direct-to-digital temperature sensor. The DS1848B-010 provides an ideal method for setting and temperature-compensating bias voltages and currents in control applications using a minimum of circuitry. The variable resistors settings are stored in EEPROM memory and can be accessed over the industry standard 2-wire serial bus. The value of each variable resistor is determined by a temperature-addressed look-up table, which can assign a unique value to each resistor for every 2℃ increment over the -40℃ to +95℃ range. The output of the DS1848B-010 is also available as a 13-bit, 2’s complement value over the serial bus. The interface I/O pins consist of SDA and SCL.
Parametrics
DS1848B-010 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.3V to +6.0V; (2)Operating Temperature: -40℃ to +95℃; (3)Programming Temperature: 0℃ to +70℃; (4)Storage Temperature: -55℃ to +125℃.
Features
DS1848B-010 features: (1)Two linear taper, temperature-controlled variable resistors; (2)DS1848-050: One 50kΩ, 256 position, One 10kΩ, 256 position; (3)DS1848-010: Two 10kΩ, 256 position; (4)Resistor settings changeable every 2℃; (5)Access to temperature data and device control via a 2-wire interface; (6)Operates from 3V or 5V supplies; (7)Packaging: 14-pin TSSOP, 16-ball CSBGA; (8)Operating temperature: -40℃ to +95℃; (9)Programming temperature: 0℃ to +70℃; (10)128 bytes of user EEPROM.

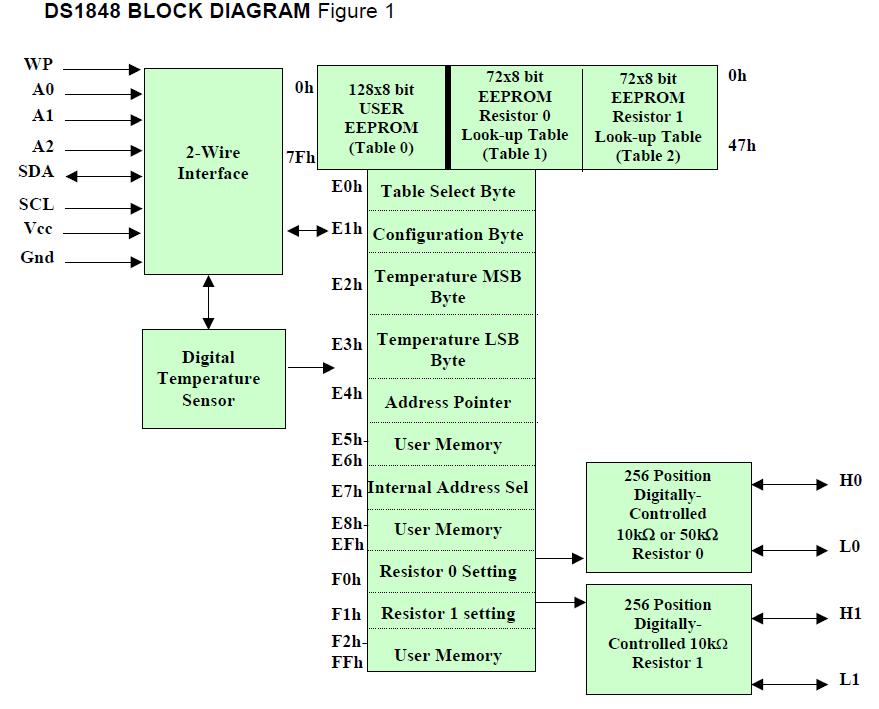

Diagrams
