Product Summary
The DTA144EUA is a digital transistor.
Parametrics
DTA144EUA absolute maximum ratings: (1)Supply voltage, VCC: -50V; (2)Input voltage, VIN: -40 to +10V; (3)Output current, IO: -30mA; (4)Power dissipation, Pd: 200mW; (5)Junction temperature, Tj: 150℃; (6)Storage temperature, Tstg: -55 to 150℃.
Features
DTA144EUA features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors; (2)The bias resistors consist of thin-film resistors with complete isolation to allow negatinve biasing of the input. They also have the advantage of almost completely eliminating parasitic effects; (3)Only the on/off conditions need to be set for operation marking device design easy.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

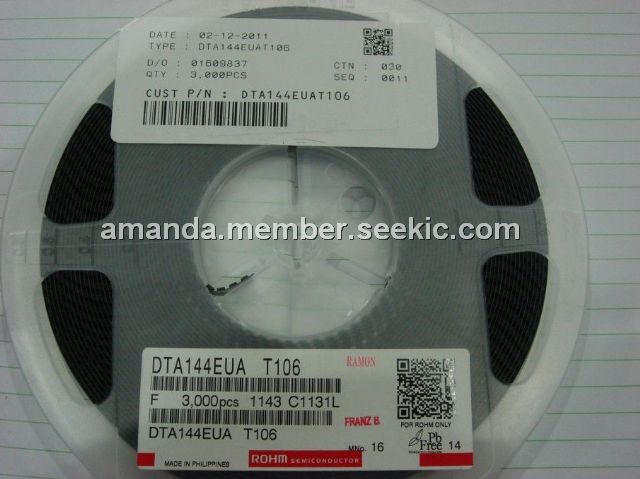

 DTA144EUA |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
DTA144EUAT106 |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) PNP 50V 30MA SOT-323 |
Data Sheet |
|
|
||||||||||||
 |
DTA144EUA-TP |
Micro Commercial Components (MCC) |
Transistors Switching (Resistor Biased) PNP 47KOhms 250MHz |
Data Sheet |
|
|
||||||||||||
