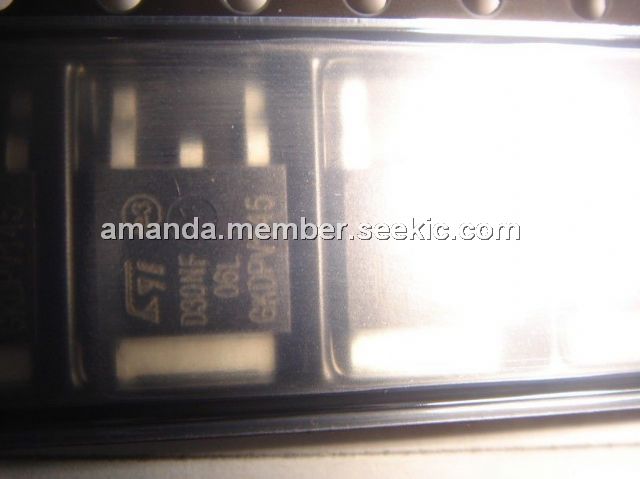

STD30NF06LT4

dpak/ipak STripFET power MOSFET, TO-252, 60 V, logic level gate drive

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.27~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.27~0.30

PartNumber:: STD30NF06LT4

Brand:: STMicroelectronics - ST | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CoCo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-08

From Other Seller

Part Number:STD30NF06LT4
US $0.27 - 0.30
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The STD30NF06LT4 is a N-channel 60V - 0.022Ω - 35A dpak/ipak STripFET power MOSFET. It is the latest development of STMicroelectronics unique Single Feature Size strip-based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalance characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility. The applications of the STD30NF06LT4 include: (1)high-efficiency DC-DC converters; (2)motor control, audio amplifiers; (3)DC-DC & DC-AC converters; (4)automotive.

Parametrics

STD30NF06LT4 absolute maximum ratings: (1)VDS Drain-source Voltage (VGS = 0): 60 V; (2)VDGR Drain-gate Voltage (RGS = 20 kΩ): 60 V; (3)VGS Gate- source Voltage: ± 20 V; (4)ID Drain Current (continuous) at TC = 25℃: 35 A; (5)ID Drain Current (continuous) at TC = 100℃: 25 A; (6)IDM Drain Current (pulsed): 140 A; (7)PTOT Total Dissipation at TC = 25℃: 70 W; (8)Derating Factor 0.46 W/℃; (9)dv/dt Peak Diode Recovery voltage slope 25 V/ns.

Features

STD30NF06LT4 features: (1)typical RDS(on) = 0.022Ω; (2)exceptional dv/dt capability; (3)logic level gate drive; (4)add suffix T4 for ordering in tape & reel; (5)add suffix -1 for ordering in ipak; (6)characterization oriented for automotive applications.
