Product Summary
The 2SC1623B-T1B is an audio frequency general purpose amplifier NPN silicon epitaxial transistor mini mold.
Parametrics
2SC1623B-T1B absolute maximum ratings: (1)Collector to Base Voltage VCBO: 60 V; (2)Collector to Emitter Voltage VCEO: 50 V; (3)Emitter to Base Voltage VEBO: 5.0 V; (4)Collector Current (DC) IC: 100 mA; (5)Total Power Dissipation at 25 ℃ Ambient Temperature PT: 200 mW; (6)Junction Temperature Tj: 150 ℃; (7)Storage Temperature Range Tstg: –55 to +150 ℃.
Features
2SC1623B-T1B features: (1)High DC Current Gain: hFE = 200 TYP.(VCE = 6.0 V, IC = 1.0 mA); (2)High Voltage: VCEO = 50 V.

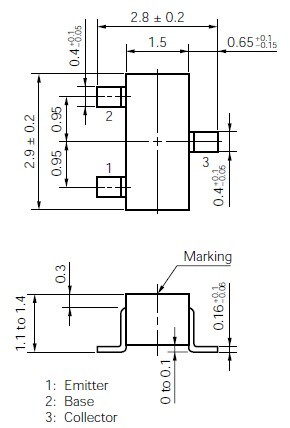

Diagrams
 |
