Product Summary
The BTS6143D is a smart highside powe switch. Its applications include power switch with current sense diagnostic feedback for 12V and 24V DC grounded loads, all types of resistive, inductive and capacitive loads, replaces electromechanical relays, fuses and discrete circuits.
CCZ4830A HYUF621AL551 MT29F64G08CBAAAWP SP100006CFUR2
CD0001AM HYUF621L MT-3 SP-100-12-R
CD0011AM HYZ111-FB MT301006 SP-100-12RC
CD0013AM HYZ51400 MT303024 SP100353
CD0018AD HZ1-014829-001 MT311110 SP-100-48
CCR20-4K710S HYE25L256160AF-7.5 MT2/V-10 SP000220
CCR3.58MC3T HYG403G MT2/V-11 SP000278565
CCR40.0MC6T HYM MT2/V-12 SP-00504
CCR77CG512JM HYM2575 MT2/V-48 SP0121-6206TF
CCS-18S34O HYM2596S-5.0 MT2/V-57 SP02
CCS25-S10-M HYM594000BM-70 MT2003F SP02A-14-12P
CCS814RL HYM910005-70 MT206115 SP02A-14-12PX
CCSL2H100D HYMP112S64CR6-S6-C MT2061F SP02E-14-5S
CCT49-16 HYMP325S64MP8 MT2146-G SP02P-12-10SW
CCT4RE1A HYN1302 MT221012 SP02P-12-8P
CCT-KM-1 HY-P701D MT2240-G SP03E-14-5SZ
CCTV-T1A HYR-1056 MT262093 SP0505BAJT
CCU1041E HYR-2016 MT28F004B5-8TE SP06SE-14-5SY-SR
CCUSC10 HYS72D128021GR-8-B MT28F008BTVG-10BD SP06SE-20-41PY-301
Parametrics
BTS6143D absolute maximum ratings: (1)Supply voltage, Vbb: 38V; (2)Supply voltage for full short circuit protection, Vbb: 30V; (3)Load dump protection, Vload dump: 45V; (4)Load current, IL: self-limited; (5)Operating temperature range, Tj: -40 to +150℃; (6)Storage temperature range, Tstg: -55 to +150℃; (7)Power dissipation, Ptot: 59W; (8)Inductive load switch-off energy dissipation, EAS: 0.3J; (9)Current through input pin, IIN: +15, -120A; (10)Current through current sense pin, IIS: +15, -120mA.
Features

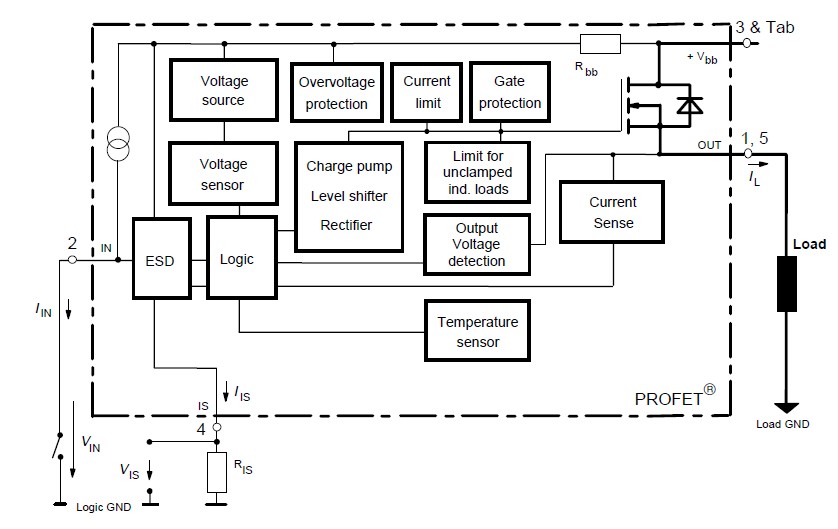

BTS6143D features: (1)Short circuit protection with latch; (2)Current limitaion; (3)Overload protection; (4)Thermal shutdown with restart; (5)Overvoltage protection; (6)Loss of ground protection; (7)Loss of Vbb protection; (8)Very low standby current; (9)Fast demagnetisation of inductive loads; (10)Electrostatic discharge protection; (11)Optimized static electromagnetic compatibility.
