ADM6823SYRJZ-RL7

Supervisory Circuit, SOT-23, -0.3V to +6V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.40~0.50

PartNumber:: ADM6823SYRJZ-RL7

Brand:: Analog Devices - ADI | Pack: SOT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CoCo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-13

From Other Seller

Part Number:ADM6823SYRJZ-RL7
US $0.40 - 0.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

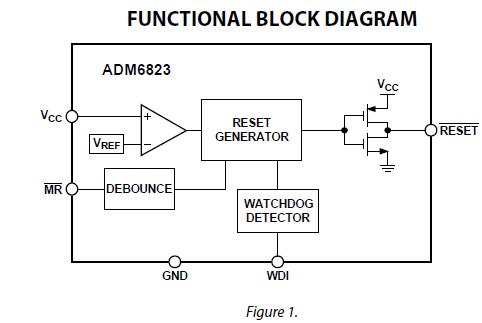

The ADM6823SYRJZ-RL7 is a Low Voltage Supervisory Circuit with Watchdog and Manual Reset in 5-Lead SOT-23. The applications of the device inlcude Microprocessor systems, Computers, Controllers, Intelligent instruments and Portable equipment. The ADM6823SYRJZ-RL7 monitors power supply voltage levels and code execution integrity in microprocessor-based systems. The parts feature different combinations of watchdog input and manual reset input and output stage configurations. Each part of the ADM6823SYRJZ-RL7 is available in nine reset threshold options, ranging from 1.58 V to 4.63 V. The reset and watchdog timeout periods are fixed at 140 ms (min) and 1.6 sec (typ), respectively. The ADM6823SYRJZ-RL7 is typically consumes only 7 μA. The device is suitable for use in low power, portable applications.

Parametrics

ADM6823SYRJZ-RL7 absolute maximum ratings: (1)VCC: -0.3 V to +6 V; (2)Output Current (RESET, RESET): 20 mA; (3)Operating Temperature Range: -40 to +125℃; (4)Storage Temperature Range: -65 to +150℃; (5)θJA, Thermal Impedance: 170℃/W; (6)Soldering Temperature, Sn/Pb: 240℃, 30 sec; b-Free: 260℃, 40 sec.

Features

ADM6823SYRJZ-RL7 features: (1)Precision low voltage monitoring; (2)9 reset threshold options: 1.58 V to 4.63 V; (3)140 ms (min) reset timeout; (4)Watchdog timer with 1.6 sec timeout; (5)Manual reset input; (6)Reset output stages; (7)Push-pull active-low; (8)Open-drain active-low; (9)Push-pull active-high; (10)Low power consumption (7 μA); (11)Guaranteed reset output valid to VCC = 1 V; (12)Power supply glitch immunity; (13)Specified from -40 to +125℃; (14)5-lead SOT-23 package.
