Product Summary

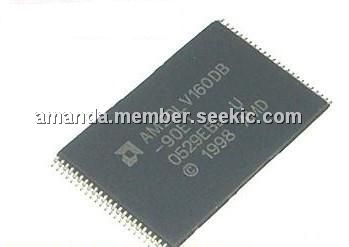

The AM29LV160DB-90EI is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words. The device is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. The AM29LV160DB-90EI is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The AM29LV160DB-90EI can also be programmed in standard EPROM programmers.
Parametrics
AM29LV160DB-90EI absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground: VCC: –0.5 V to +4.0 V, A9, OE#, and RESET#: –0.5 V to +12.5 V, All other pins: –0.5 V to VCC+0.5 V; (4)Output Short Circuit Current: 200 mA.
Features
AM29LV160DB-90EI features: (1)Single power supply operation: Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications, Regulated voltage range: 3.0 to 3.6 volt read and write operations and for compatibility with high performance 3.3 volt microprocessors; (2)Manufactured on 0.23 μm process technology: Fully compatible with 0.32 μm Am29LV160B device; (3)High performance: Access times as fast as 70 ns; (4)Ultra low power consumption (typical values at 5 MHz): 200 nA Automatic Sleep mode current, 200 nA standby mode current, 9 mA read current, 20 mA program/erase current.

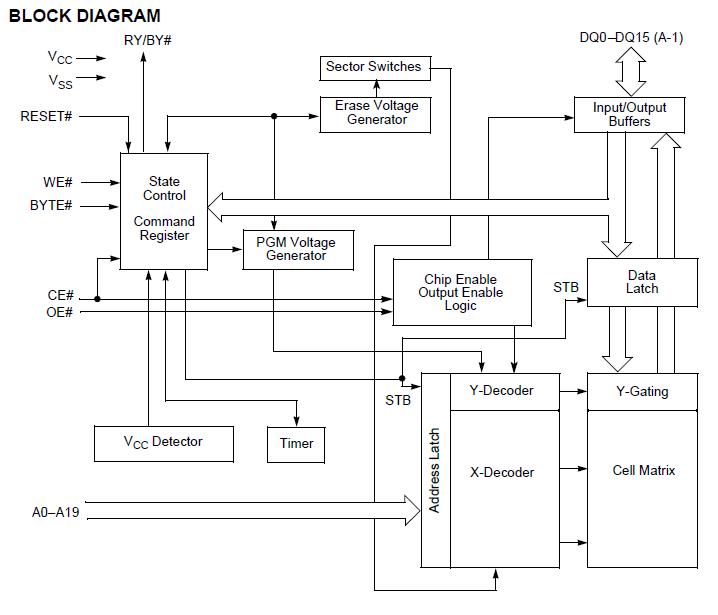

Diagrams
![]() |
