Product Summary

The IRG4PC40UD is an Insulated Gate Bipolar Transistor (IGBT). In spite of its similarity to the cross-section of a power MOSFET, operating of the two transistors is fundamentally different, the IGBT being a minority carrier device.

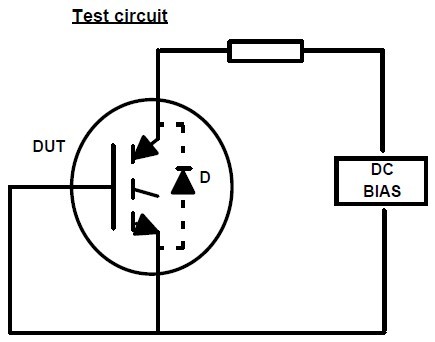

Parametrics

Absolute maximum ratings: (1)Bias: Vce = 100% of maximum rated, V(BR)CES up to 500V: 500V for all devices with rated V(BR)CES DUT greater than 500V; (2)Temperature: 85℃ BIAS; (3)Relative Humidity: 85%; (4)Duration: 2000 Hours nominal.

Features

Features: the physical operation of the IGBT is closer to that of a bipolar transistor than to that of a power MOSFET.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRG4PC40UD
IRG4PC40UD

International Rectifier

IGBT W/DIODE 600V 40A TO-247AC

Data Sheet

1-125: $2.03
IRG4PC40UD-EPBF
IRG4PC40UD-EPBF

International Rectifier

IGBT Transistors 600V UltraFast 8-60kHz

Data Sheet

0-1: $4.22
1-25: $2.89
25-100: $2.15
100-250: $2.06
IRG4PC40UDPBF
IRG4PC40UDPBF

International Rectifier

IGBT Transistors 600V UltraFast 8-60kHz

Data Sheet

0-1: $4.08
1-25: $2.79
25-100: $2.08
100-250: $1.99
