Product Summary

The 74LVC32AD is a quad 2-input OR gate.

Parametrics

74LVC32AD absolute maximum ratings: (1)VCC, supply voltage: 3.6V; (2)VI, input voltage: 5.5V; (3)VO, output voltage: VCC V; (4)Tamb, ambient temperature: +125℃; (5)Input transition rise and fall rate: 20ns/V.

Features

74LVC32AD features: (1)5V tolerant inputs for interlacing with 5V logic; (2)Wide supply voltage range from 1.2V to 3.6V; (3)CMOS low power consumption; (4)Direct interface with TTL levels; (5)Complies with JEDEC standard; (6)ESD protection; (7)Specified from -40 to +85℃ and -40 to +125℃.

Diagrams

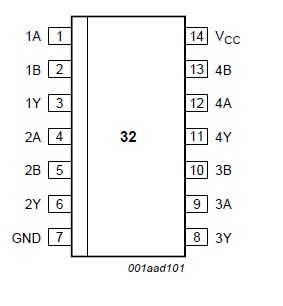

74LVC32AD pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
74LVC32AD
74LVC32AD
Other

Data Sheet
Negotiable
74LVC32AD,112
74LVC32AD,112
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT OR GATE
Data Sheet
0-1: $0.06
1-25: $0.05
25-100: $0.05
100-250: $0.05
74LVC32AD,118
74LVC32AD,118
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-IN OR GATE
Data Sheet
0-1: $0.05
1-25: $0.05
25-100: $0.05
100-250: $0.04
74LVC32ADB,118
74LVC32ADB,118
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT OR GATE
Data Sheet
0-1: $0.07
1-25: $0.05
25-100: $0.05
100-250: $0.05
74LVC32ADB,112
74LVC32ADB,112
NXP Semiconductors
Gates (AND / NAND / OR / NOR) QUAD 2-INPUT OR GATE
Data Sheet
0-1: $0.22
1-25: $0.18
25-100: $0.14
100-250: $0.11
