Product Summary

The AM29LV065DU90RWHF is a 64 Mbit, 3.0 Volt (3.0 V to 3.6 V) single power supply flash memory device organized as 8,388,608 bytes. Data appears on DQ0-DQ7. The device is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The AM29LV065DU90RWHF can also be programmed in standard EPROM programmers. The device offers access times of 90, 100, and 120 ns. The device is offered in standard 48-pin TSOP and 63-ball FBGA packages.

Parametrics

Absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground: VCC: –0.5 V to +4.0 V; VIO: –0.5 V to +5.5 V; (4)A9, OE#, ACC, and RESET#: –0.5 V to +12.5 V; (5)All other pins: –0.5 V to VCC +0.5 V; (6)Output Short Circuit Current: 200 mA.

Features

Features: (1)Single power supply operation: 3.0 to 3.6 volt read, erase, and program operations; (2)VersatileIOTM control: Device generates output voltages and tolerates input voltages on the DQ I/Os as determined by the voltage on VIO input; (3)High performance: Access times as fast as 90 ns; (4)Manufactured on 0.23 μm process technology; (5)CFI (Common Flash Interface) compliant: Provides device-specific information to the system,; (6)allowing host software to easily reconfigure for different Flash devices ; (7)SecSi (Secured Silicon) Sector regio; (8)Ultra low power consumption (typical values at 3.0 V, 5 MHz): 9 mA typical active read current; 26 mA typical erase/program current; 200 nA typical standby mode current; (9)Flexible sector architecture: One hundred twenty-eight 64 Kbyte sectors.

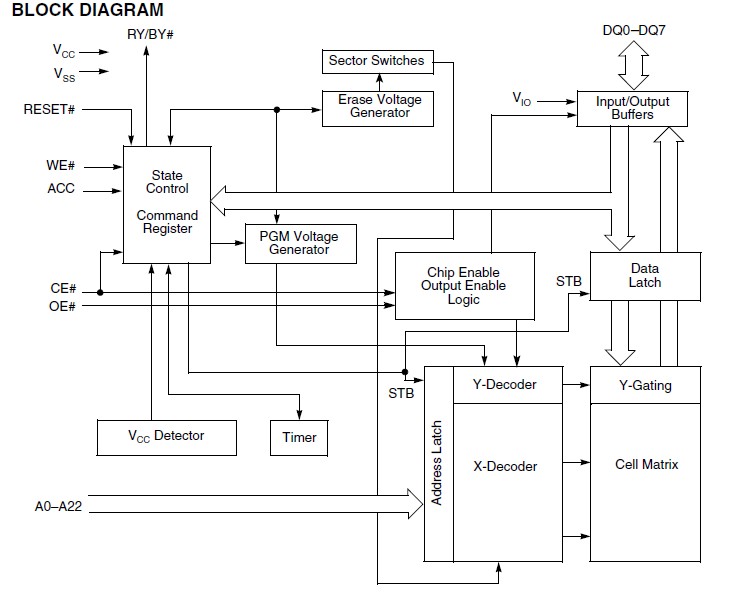

Diagrams
