TPS7333QDRG4

low-dropout voltage regulator, integrated delayed reset function, soic-8, –0.3 V to 11 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.96~1.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.96~1.20

PartNumber:: TPS7333QDRG4

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CoCo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-20

From Other Seller

Part Number:TPS7333QDRG4
US $0.96 - 1.20
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

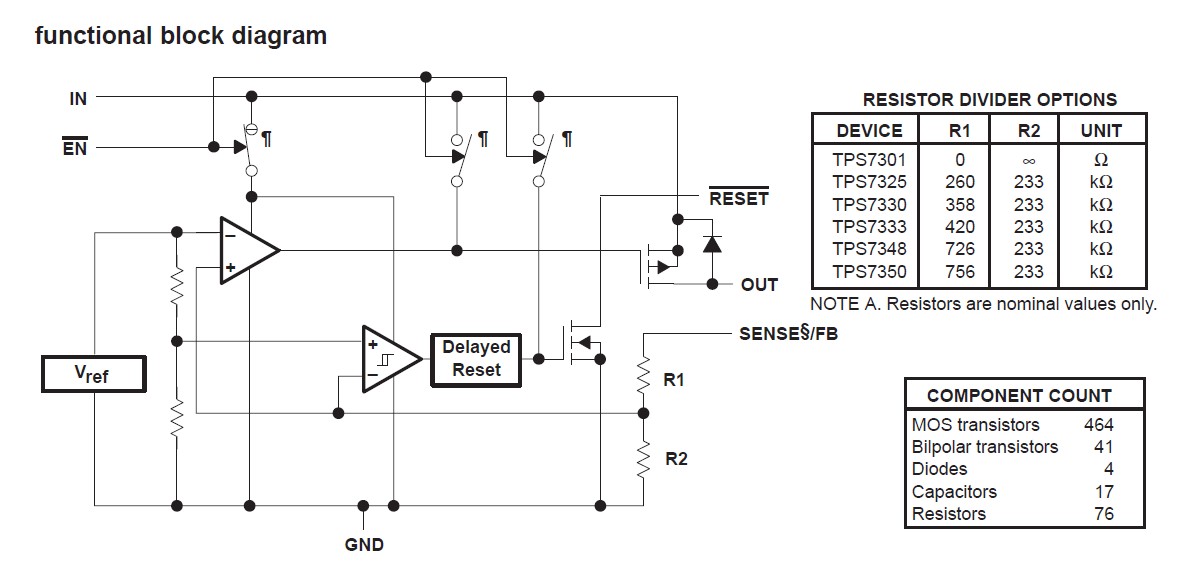

The TPS7333QDRG4 is a member of a family of micropower low-dropout (LDO) voltage regulator. It is differentiated from the TPS71xx and TPS72xx LDOs by their integrated delayed microprocessor-reset function. If the precision delayed reset is not required, the TPS71xx and TPS72xx should be considered

Parametrics

TPS7333QDRG4 absolute maximum ratings: (1)Input voltage range§, VI, RESET, SENSE, EN –0.3 V to 11 V; (2)Output current, IO 2 A; (3)Continuous total power dissipation See Dissipation Rating Tables 1 and 2; (4)Operating virtual junction temperature range, TJ –55℃ to 150℃; (5)Storage temperature range, Tstg –65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds 260℃.

Features

TPS7333QDRG4 features: (1)Available in 2.5-V, 3-V, 3.3-V, 4.85-V, and 5-V Fixed-Output and Adjustable Versions; (2)Integrated Precision Supply-Voltage Supervisor Monitoring Regulator Output Voltage; (3)Active-Low Reset Signal with 200-ms Pulse Width; (4)Very Low Dropout Voltage. Maximum of 35 mV at IO = 100 mA (TPS7350); (5)Low Quiescent Current – Independent of Load 340 mA Typ; (6)Extremely Low Sleep-State Current, 0.5 mA Max; (7)2% Tolerance Over Full Range of Load, Line, and Temperature for Fixed-Output Versions§; (8)Output Current Range of 0 mA to 500 mA; (9)TSSOP Package Option Offers Reduced Component Height For Critical Applications.
