Product Summary
The SK34 is a surface mount schottky barrier rectifier.
Parametrics
SK34 absolute maximum ratings: (1)Maximum recurrent peak reverse voltage, VRRM: 40V; (2)Maximum RMS voltage, VRMS: 28V; (3)Maximum DC blocking voltage, VDC: 40V; (4)Maximum average forward rectified current, I(AV): 3.0A; (5)Peak forward surge current 8.3ms single half sine-wave superimposed on rated load, IFSM: 100A; (6)Maximum instantaneous forward voltage at 3.0A, VF: 0.5V; (7)Maximum DC reverse current at Rated DC blocking voltage, IR: 0.5mA; (8)Maximum thermal resistance: 10℃/W; (9)Typical junction capacitance, CJ: 300pF; (10)Operating and storage temperature range, TJ, TSTG: -65 to +150℃.
Features
SK34 features: (1)For surface mounted applications; (2)High temperature metallurgically bonded contacts; (3)Capable of meeting environmental standards of MIL-STD-19500; (4)Plastic material-UL flammability classification 94V-0; (5)High reliability; (6)High current capability and low VF; (7)Submersible temperature of 265℃ for 10s in solder bath.

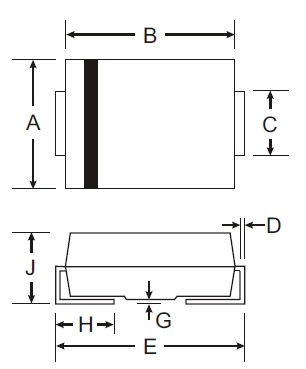

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SK34 |
|
RECT SCHOTTKY 3A 40V DO-214AB |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
SK34A |
Taiwan Semiconductor |
Schottky (Diodes & Rectifiers) 3.0 Amp 40 Volt 150 Amp IFSM |
Data Sheet |
|
|
||||||||||||||||||||
|
SK34B |
Taiwan Semiconductor |
Schottky (Diodes & Rectifiers) 3.0 Amp 40 Volt 70 Amp IFSM |
Data Sheet |
|
|
||||||||||||||||||||
 |
SK34B-LTP |
|
DIODE SCHOTTKY 3A 40V SMB |
Data Sheet |
|
|
||||||||||||||||||||
|
SK34S |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||||||
 |
SK34-TP |
Micro Commercial Components (MCC) |
Schottky (Diodes & Rectifiers) 40V 3A |
Data Sheet |
|
|
||||||||||||||||||||
|
SK34-T |
Micro Commercial Components (MCC) |
Schottky (Diodes & Rectifiers) 40V 3A |
Data Sheet |
Negotiable |
|
||||||||||||||||||||
|
SK34B-TP |
Micro Commercial Components (MCC) |
Schottky (Diodes & Rectifiers) 3.0A 40V |
Data Sheet |
|
|
||||||||||||||||||||
