Product Summary

The SI1303DL-T1-E3 is a P-channel 2.5V MOSFET.

Parametrics

SI1303DL-T1-E3 absolute maximum ratings: (1)Drain-source voltage, VDS: -20V; (2)Gate-source voltage, VGS: ±12V; (3)Continuous drain current ,ID: -0.67A; (3)Pulsed drain current, IDM: -2.5A; (4)Continuous diode current, IS: -0.24A; (5)Maximum power dissipation, PD: 0.29W; (6)Operating junction and storage temperature range, TJ, TSTG: -55 to 150℃.

Features

SI1303DL-T1-E3 features: (1)Halogen-free according to IEC 61249-2-21 definition; (2)TrenchFET power MOSFET; (3)2.5V rated; (4)Compliant to RoHS directive 2002/95/EC.

Diagrams

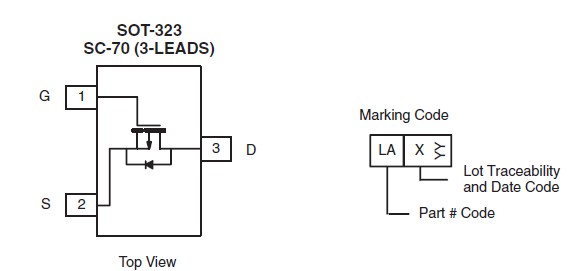

SI1303DL-T1-E3 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SI1303DL-T1-E3
SI1303DL-T1-E3
Vishay/Siliconix
MOSFET 20V 0.72A
Data Sheet
0-1: $0.30
1-10: $0.20
10-100: $0.16
100-250: $0.13
