Product Summary
The PUMD12 is a double resistor-equipped transistor in surface-mounted device plastic packages. The applications of the PUMD12 include low current peripheral driver, control of IC inputs, replaces general-purpose transistors in digital applications.
Parametrics
PUMD12 absolute maximum ratings: (1)VCBO, collector-base voltage: 50V; (2)VCEO, collector-emitter voltage: 50V; (3)VEBO, emitter-base voltage: 10V; (4)VI, positive: +40V, negative: -10V; (5)IO, output current: 100mA; (6)Ptot, PEMD12: 200mW.
Features
PUMD12 features: (1)100mA output current capability; (2)Reduces component count; (3)Built-in bias resistors; (4)Reduces pick and place costs; (5)Simplifies circuit design; (6)AEC-Q101 qualified.

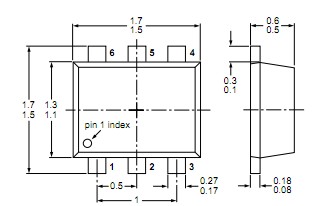

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PUMD12 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
PUMD12 T/R |
NXP Semiconductors |
Transistors Switching (Resistor Biased) TRNS DOUBL RET TAPE7 |
Data Sheet |
Negotiable |
|
||||||||||||
|
PUMD12,115 |
NXP Semiconductors |
Transistors Switching (Resistor Biased) TRNS DOUBL RET TAPE7 |
Data Sheet |
|
|
||||||||||||
