MM8130-2600RB8

Product Summary

The MM8130-2600RB8 is a SWF connector.

UP1919TE
UP2.8B100
UP2B-R47
UP2SC-121-R
UP2UC3R3
UP3(CART)
UP-39D24
UP3B-1R0
UP3T470
UP4572G
UP4B-1R0
UP6106M8
UP6111CC
UP6127AD
UP6162DC
UP6209
UP6214AK
UP6215BK
UP6225ALAM
UP6262A
UP6281S8
UP6282AQDD
UP6305AB
UP75
UP7501M8
UP7901AMT6
UP-810NB
UP-810NR
UP-810PG
UP82C55A
UP9533
UP9971
UPA1211G
UPA1457H
UPA1526H
UPA1556H
UPA1600L
UPA1601A
UPA1601G
UPA1650H
UPA1703G-E1
UPA1716GE1
UPA1717G-E1
UPA1774G
UPA1793G-E1-A/JC
UPA1855GR-9JG-E1
UPA2709M
UPA2720M
UPA2754GR
UPA2790GR-E1-A
UPA33A 5
UPA36A-A
UPA611TA-T1-A
UPA829TF-T1
UPA82C
UPA831
UPA831TC
UPA832TF-T1
UPA836T
UPA836TB
UPB201D-A
UPB202C-10
UPB2085D
UPB2147D
UPB21A-3
UPB2S10D
UPB558G2
UPB566AC
UPB57727
UPB6312R
UPB7404C
UPB7410C
UPB7420C
UPB8216D
UPB8238D
UPB8262C
UPB8266D
UPB82830
UPC1006C
UPC1023H
UPC1037H
UPC1060D
UPC1066G
UPC1093T
UPC1100C
UPC11371
UPC1160C
UPC1185P
UPC1187-V
UPC1213C
UPC1237HA
UPC1246C
UPC1253HA3
UPC1260
UPC1270H
UPC1287G
UPC1344G
UPC1378H
UPC1387C
UPC1390C
UPC1408C
UPC1418
UPC141D
UPC142
UPC14315HC
UPC1490G
UPC1491G
UPC1533HA
UPC153A
UPC155G2
UPC1671C
UPC1672C
UPC16875
UPC1688G
UPC1702G
UPC1853正
UPC1870CA
UPC1944G
UPC2003C
UPC2156GC
UPC22100
UPC2320GSE2
UPC2406AHF
UPC251-A
UPC2581V
UPC258G2
UPC2701/
UPC2708TB-E3
UPC272G2
UPC2746TB-E3
UPC2748T/C1T
UPC2763T-E3
UPC2775G
UPC277G2(22)-E2
UPC2792T
UPC28021
UPC2903T
UPC29L05
UPC29M08
UPC3005H-AZ
UPC305G2
UPC311
UPC311G
UPC311G2
UPC319G2-A
UPC3205GR
UPC324C-A(S)
UPC3345GC
UPC339G2-E1-A
UPC3403C(MS)
UPC34088
UPC358G2
UPC3747S
UPC37M31
UPC3802D
UPC4013G
UPC4016C
UPC434G
UPC4519
UPC451GR25
UPC4560G
UPC4570G2-E1
UPC4570G2-E1/M
UPC4572CMS
UPC4574G
UPC4574L
UPC45M1A
UPC4704G
UPC5001CY-022
UPC5020
UPC5021CT-E01
UPC5555G
UPC557H
UPC58TC2
UPC624G
UPC666GSE1
UPC7082G
UPC7159K
UPC7357GR
UPC741G2
UPC78L05
UPC78L07
UPC78L15T
UPC78LO5-A
UPC78N08
UPC78N24
UPC796G-T1
UPＣ７９Ｌ１５
UPC8001GR-E2
UPC8013A
UPC802G2
UPC8100G
UPC8106T
UPC8106TB-E3
UPC8109T/
UPC8112T
UPC812G2
UPC814G2T1
UPC8218T5A-E1
UPC8218T5A-E1-A
UPC8233TK-EVAL-A
UPC853CT01
UPC86110
UPCBQD8915
UPCC664GS
UPD02820
UPD1001C
UPD10162D-T
UPD1293C
UPD14305
UPD1510C
UPD16252GS-002-E2
UPD16337
UPD17011
UPD1708AG-323-00
UPD17107L
UPD17149GT-524-E1-A
UPD17245MC-107-5A4-E2
For more information or to order consultation, please EMAL us directly.

nancy2008chan@gmail.com

Parametrics

MM8130-2600RB8 specifications: (1)Frequency rating: DC to 6GHz; (2)Nominal impedance: 50ohm; (3)Temperature range: -40 to +85 degree C; (4)Voltage rating: 250V r.m.s; (5)Contact resistance: 50m ohm max.; (6)Withstanding voltage: AC 300V; (7)Insulation resistance: 500M ohm min.; (8)V.S.W.R DC to 3 GHz: 1.2 max; 3 to 6 GHz: 1.3 max; (9)Insertion loss(at ON switch) DC to 3 GHz: 0.1dB max; 3 to 6 GHz: 0.2dB max; (10)Isolation(at OFF switch) DC to 3 GHz: 20dB max; 3 to 6 GHz: 15dB max; (11)Durability: 100 cycles.

Features

MM8130-2600RB8 features: (1)Connector with mechanical switch function; (2)Small size and low profile(suitable high density); (3)Excellent performance(insertion loss=0.1dB max. to 3GHz); (4)High frequency available(to 6 GHz); (5)High durability for engagement(100 cycles); (6)Good adhered force from PWB; (7)SWD probes are available.

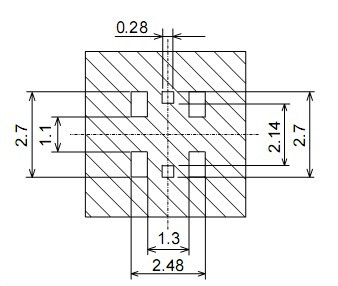

Diagrams
