Product Summary
The MM3Z5V6ST1G is a zener voltage regulator. This MM3Z5V6ST1G Zener diode is packaged in a SOD.323 surface mount package that has a power dissipation of 200 mW. It is designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. It is well suited for applications such as cellular phones, hand.held portables, and high density PC boards.
Parametrics
MM3Z5V6ST1G features: (1)Standard Zener Breakdown Voltage Range 2.4 V to 18 V; (2)Steady State Power Rating of 200 mW; (3)Low Body Height: 0.035, (0.9 mm); (4)Package Weight: 4.507 mg/unit; (5)ESD Rating of Class 3 (>16 kV) per Human Body Model; (6)Tight Tolerance VZ; (7)Pb-Free Package is available.
Features
MM3Z5V6ST1G maximum ratings: (1)Thermal Resistance from Junction-to-Ambient RθJA 635 ℃/W; (2)Junction and Storage Temperature Range TJ, Tstg -65 to +150 ℃; (3)Total Device Dissipation FR.5 Board, PD 200 mW.

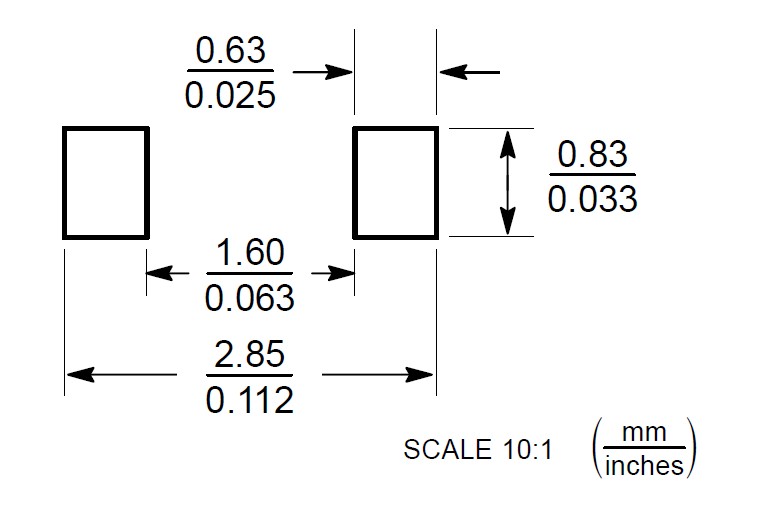

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MM3Z5V6ST1G |
ON Semiconductor |
Zener Diodes 5.6V 200mW |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
MM3Z |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MM3Z10 |
Taiwan Semiconductor |
Zener Diodes 10 Volt 500mW 5% |
Data Sheet |
Negotiable |
|
||||||||||||
|
MM3Z100 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MM3Z10B |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MM3Z10VB |
Fairchild Semiconductor |
Zener Diodes Diode Zener 10.0V 200mW 2% |
Data Sheet |
|
|
||||||||||||
|
MM3Z10VC |
Fairchild Semiconductor |
Zener Diodes Diode Zener 10.0V 200mW 5% |
Data Sheet |
|
|
||||||||||||
