Product Summary

The MIC49150WR is a low voltage LDO regulator with dual input voltages. Its applications include graphics processors, PC add-in cards, microprocessor core voltage supply, low voltage digital ICs, high efficiency linear power supplies, SMPS post regulators.

Parametrics

MIC49150WR absolute maximum ratings: (1)Supply voltage, VIN: 8V; (2)Bias supply voltage, VBIAS: 8V; (3)Enable input voltage, VEN: 8V; (4)Power dissipation: internally limited; (5)ESD rating: 4kV.

Features

MIC49150WR features: (1)Input voltage range, VIN: 1.4 to 6.5V; VBIAS: 3.0 to 6.5V; (2)Stable with 1μF ceramic capacitor; (3)±1% initial tolerance; (4)Maximum dropout voltage of 500mV over temperature; (5)Adjustable output voltage down to 0.9V; (6)Ultra fast transient response; (7)Excellent line and load regulation specifications; (8)Logic controlled shutdown option; (9)Thermal shutdown and current limit protection; (10)Power MSOP-8 and S-Pak packages; (11)Junction temperature range: -40 to 125℃.

Diagrams

MIC49150WR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MIC49150WR
MIC49150WR

IC REG LDO ADJ 1.5A 5SPAK
Data Sheet
0-1: $2.63
1-25: $2.11
25-100: $1.64
100-250: $1.56
250-500: $1.52

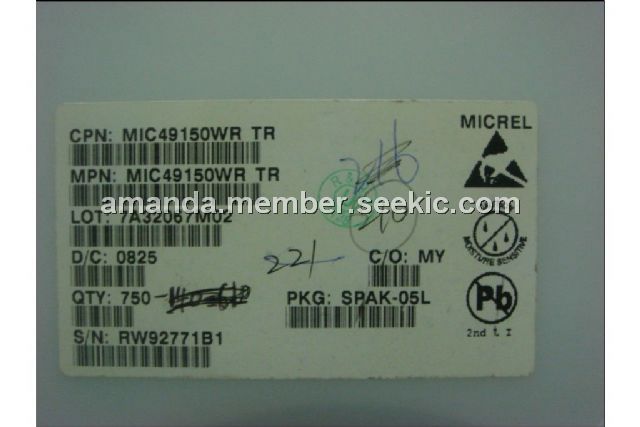

MIC49150WR TR
MIC49150WR TR

IC REG LDO ADJ 1.5A SPAK-5
Data Sheet
0-750: $1.52
