Product Summary
The AD8313ARMZ is a complete multistage demodulating logarithmic amplifier that can accurately convert an RF signal at its differ-ential input to an equivalent decibel-scaled value at its dc output. The AD8313ARMZ maintains a high degree of log conformance for signal frequencies from 0.1 GHz to 2.5 GHz and is useful over the range of 10 MHz to 3.5 GHz. The applications of the AD8313ARMZ include RF transmitter power amplifier setpoint control and level monitoring, Logarithmic amplifier for RSSI measurement cellular base stations, radio link, radar.
Parametrics
AD8313ARMZ absolute maximum ratings: (1)Supply Voltage: 5.5 V; (2)VOUT, VSET, PWDN: 0 V, VPOS; (3)Input Power Differential (re: 50 Ω, 5.5 V): 25 dBm; (4)Input Power Single-Ended (re: 50 Ω, 5.5 V): 19 dBm; (5)Internal Power Dissipation: 200 mW; (6)θJA: 200℃/W; (7)Maximum Junction Temperature: 125℃; (8)Operating Temperature Range: –40℃ to +85℃; (9)Storage Temperature Range: –65℃ to +150℃.
Features
AD8313ARMZ features: (1)Wide bandwidth: 0.1 GHz to 2.5 GHz min; (2)High dynamic range: 70 dB to ±3.0 dB; (3)High accuracy: ±1.0 dB over 65 dB range (@ 1.9 GHz); (4)Fast response: 40 ns full-scale typical; (5)Controller mode with error output; (6)Scaling stable over supply and temperature; (7)Wide supply range: 2.7 V to 5.5 V; (8)Low power: 40 mW at 3 V; (9)Power-down feature: 60 mW at 3 V; (10)Complete and easy to use.

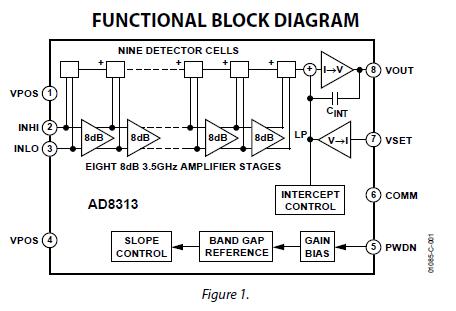

Diagrams
