Product Summary
The MC6803P is an 8-bit single-chip microcontroller unit which significantly enhances the capabilities of the M6800 family of parts. The MC6803P includes an upgraded M6800 microprocessor unit with upward-source and object-code compatibility.
Parametrics
MC6803P absolute maximum ratings: (1)supply voltage: -0.3 to +7.0 V; (2)input voltage: -0.3 to +7.0 V; (3)operating temperature range: 0 to 70 ℃; (4)storage temperature range: -55 to +150 ℃.
Features
MC6803P features: (1)enhance MC6800 instruction set; (2)8×8 multiply instruction; (3)serial communications interface; (4)upward source and objuct code compatibility with the M6800; (5)16-bit three-function programmable timer; (6)single-chip or expanded operation to 64 K byte address space; (7)bus compatibility with M6800 family; (8)2048 bytes of ROM; (9)128 bytes of RAM.

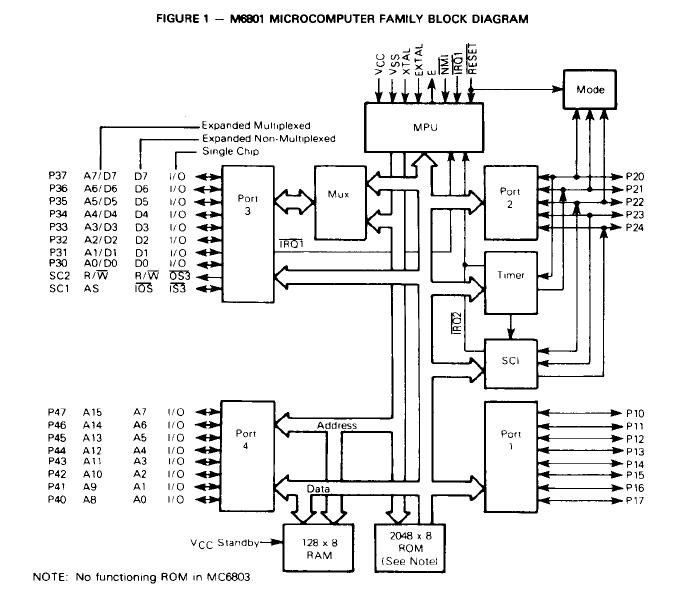

Diagrams
 |
