Product Summary

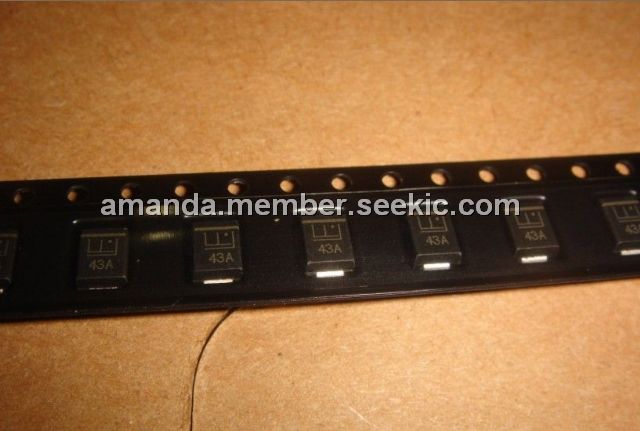

The central semiconductor P6SMB43A is a surface mount uni-directional glass passivated junction transient voltage suppressor designed to protect voltage sensitive components from high voltage transients. The P6SMB43A is manufactured with a glass passivated chip for optimum reliability.

Parametrics

P6SMB43A maximum ratings: (1)Peak Power Dissipation PPM: 600 W; (2)Peak Forward Surge Current (JEDEC Method) IFSM: 100 A; (3)Operating and Storage, Junction Temperature TJ,Tstg: -65 to +150 ℃.

Features

P6SMB43A features: (1)Number of Pins: 2; (2)Breakdown Voltage: 43.0 V; (3)Size-Height: 2.41 mm; (4)Size-Length: 4.57 mm; (5)Size-Width: 3.81 mm; (6)Voltage Rating (DC): 43.0 V; (7)Lead-Free Status: Lead Free; (8)Mounting Type: Surface Mount; (9)Packaging: Tape & Reel (TR), Tape; (10)RoHS: Compliant.

Diagrams

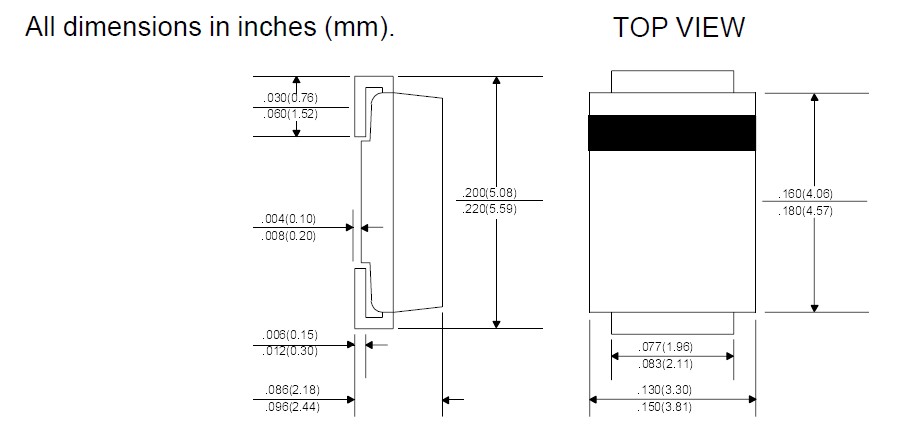

P6SMB43A All dimensions in inches

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
P6SMB43A
P6SMB43A

Littelfuse

TVS Diodes - Transient Voltage Suppressors TVS SURF MT DO214AA

Data Sheet

0-1: $0.25
1-25: $0.22
25-100: $0.19
100-250: $0.17
P6SMB43A/1
P6SMB43A/1

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 43V 5% Unidir

Data Sheet

Negotiable
P6SMB43A/55
P6SMB43A/55

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 43V Unidirect

Data Sheet

Negotiable
P6SMB43A/52
P6SMB43A/52

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 43V Unidirect

Data Sheet

Negotiable
P6SMB43A/5
P6SMB43A/5

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 43V 5% Unidir

Data Sheet

Negotiable
P6SMB43A/2
P6SMB43A/2

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 43V 5% Unidir

Data Sheet

Negotiable
P6SMB43A-E3/52
P6SMB43A-E3/52

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 43V Unidirect

Data Sheet

0-1: $0.16
1-10: $0.15
10-50: $0.14
50-100: $0.14
100-750: $0.12
P6SMB43A-E3/5B
P6SMB43A-E3/5B

Vishay Semiconductors

TVS Diodes - Transient Voltage Suppressors 600W 43V Unidirect

Data Sheet

0-1: $0.16
1-10: $0.15
10-25: $0.14
25-100: $0.14
