Product Summary
The LM6171BIMX is a high speed unity-gain stable voltage feedback amplifier. It offers a high slew rate of 3600V/μs and a unity-gain bandwidth of 100 MHz while consuming only 2.5 mA of supply current. The LM6171BIMX has very impressive AC and DC performance which is a great benefit for high speed signal processing and video applications. The ±15V power supplies allow for large signal swings and give greater dynamic range and signal-to-noise ratio. The LM6171BIMX has high output current drive, low SFDR and THD, ideal for ADC/DAC systems. The LM6171BIMX is specified for ±5V operation for portable applications. The LM6171BIMX is built on National’s advanced VIP. III (Vertically Integrated PNP) complementary bipolar process.
Parametrics
LM6171BIMX absolute maximum ratings: (1)ESD Tolerance: 2.5 kV; (2)Supply Voltage (V+–V.): 36V; (3)Differential Input Voltage: ±10V; (4)Common-Mode Voltage Range: V+ .1.4V to V. + 1.4V; (5)Output Short Circuit to Ground: Continuous; (6)Storage Temperature Range: -65℃ to +150℃; (7)Maximum Junction Temperature: 150℃.
Features
LM6171BIMX features: (1)Easy-To-Use Voltage Feedback Topology; (2)Very High Slew Rate: 3600V/μs; (3)Wide Unity-Gain-Bandwidth Product: 100 MHz; (4).3 dB Frequency @ AV = +2: 62 MHz; (5)Low Supply Current: 2.5 mA; (6)High CMRR: 110 dB; (7)High OpeLoop Gain: 90 dB; (8)Specified for ±15V and ±5V Operation.

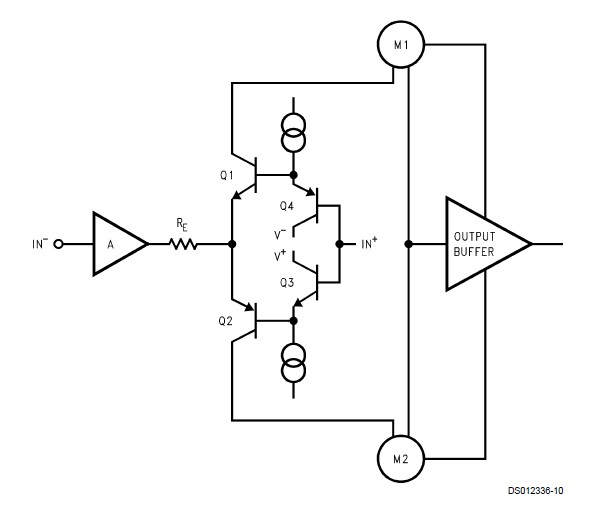

Diagrams
