Product Summary

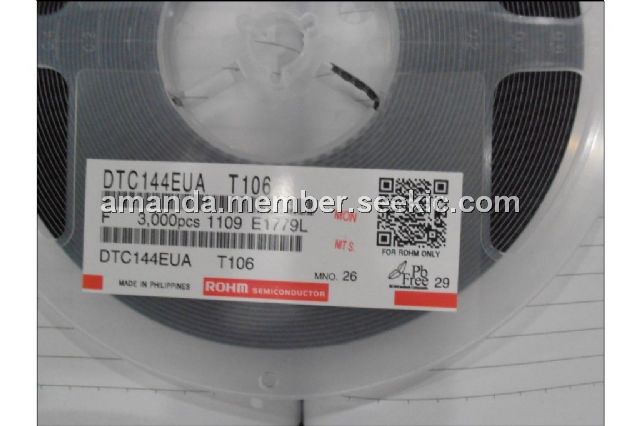

The DTC144EUA is a digital transistor.
Parametrics
DTC144EUA absolute maximum ratings: (1)Collector-base voltage, V(BR)CBO: 50V; (2)Collector-emitter voltage, V(BR)CEO: 50V; (3)Emitter-base voltage, V(BR)EBO: 5V; (4)Collector current, IC: 100mA; (5)Collector power dissipation, PC: 200mW; (6)Junction temperature, TJ: 150℃; (7)Storage temperature, TSTG: -55 to +150℃.
Features
DTC144EUA features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors; (2)The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects; (3)Only the on/off conditions need to be set for operation marking device design easy.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DTC144EUA |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
DTC144EUAHRAT106 |
ROHM Semiconductor |
Transistors Bipolar (BJT) NPN |
Data Sheet |
Negotiable |
|
||||||||||||
 |
DTC144EUAT106 |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) DIGIT NPN 50V 100MA SOT-323 |
Data Sheet |
|
|
||||||||||||
 |
DTC144EUA-TP |
Micro Commercial Components (MCC) |
Transistors Switching (Resistor Biased) NPN 47KOhms 250MHz |
Data Sheet |
|
|
||||||||||||
