Product Summary

The BF2030 is a silicon N-channel MOSFET tetrode.

Parametrics

BF2030 maximum ratings: (1)Drain-source voltage VDS 14 V; (2)Continuos drain current ID 40 mA; (3)Gate 1/gate 2 peak source current ±IG1/2SM 10; (4)Gate 1 (external biasing) +VG1SE 7 V; (5)Total power dissipation, TS = 76 ℃ Ptot 200 mW; (6)Storage temperature Tstg -55 +150 ℃; (7)Channel temperature Tch 150 ℃.

Features

BF2030 features: (1)For low noise, high gain controlled input stages up to 1GHz; (2)Operating voltage 5V.

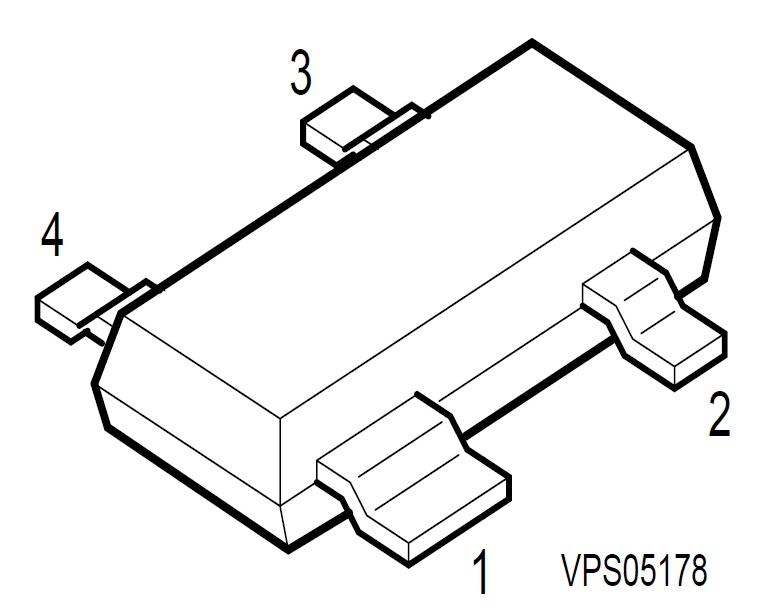

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

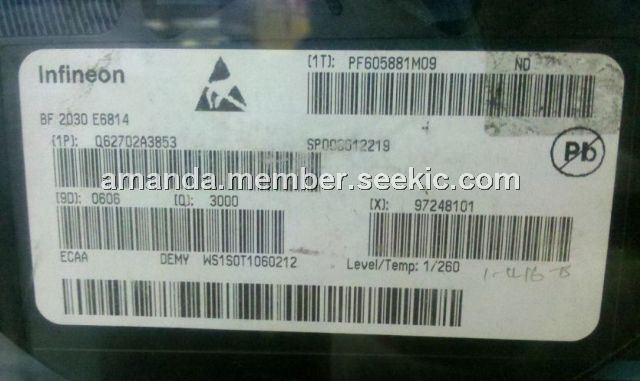

BF2030W E6814
BF2030W E6814
Other

Data Sheet
Negotiable
