Product Summary

The BC807-40W is a PNP surface mount transistor.

Parametrics

BC807-40W absolute maximum ratings: (1)Collector-emitter voltage, VCEO: -45V; (2)Emitter-base voltage, VEBO: -5.0V; (3)Collector current, IC: -500mA; (4)Peak collector current, ICM: -1000mA; (5)Peak emitter current, IEM: -1000mA; (6)Power dissipation at TSB=50℃, Pd: 200mW; (7)Thermal resistance, junction to ambient air, RJA: 625 ℃/W; (8)Operaing and storage temperature range, Tj, TSTG: -65 to +150℃.

Features

BC807-40W features: (1)Ideally suited for automatic insertion; (2)Epitaxial planar die construction; (3)For switching, AF driver and amplifier applications; (4)Complementary NPN types available; (5)Lead free by design/RoHS compliant; (6)"Green" device.

Diagrams

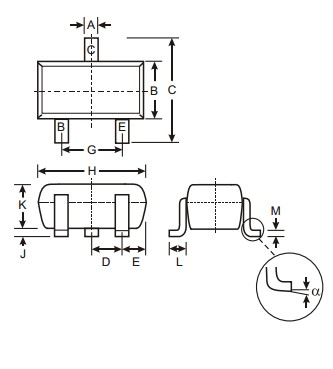

BC807-40W diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BC807-40W
BC807-40W
Other

Data Sheet
Negotiable
BC807-40W /T3
BC807-40W /T3
NXP Semiconductors
Transistors Bipolar (BJT) TRANS GP TAPE-11
Data Sheet
Negotiable
BC807-40W,115
BC807-40W,115
NXP Semiconductors
Transistors Bipolar (BJT) TRANS GP TAPE-7
Data Sheet
0-1: $0.09
1-25: $0.08
25-100: $0.06
100-250: $0.03
BC807-40W-7
BC807-40W-7
Diodes Inc.
Transistors Bipolar (BJT) PNP SURFACE MOUNT TRANSISTOR
Data Sheet
0-1: $0.26
1-10: $0.18
10-100: $0.07
100-500: $0.05
BC807-40W,135
BC807-40W,135
NXP Semiconductors
Transistors Bipolar (BJT) TRANS GP TAPE-11
Data Sheet
0-1: $0.09
1-25: $0.08
25-100: $0.06
100-250: $0.03
BC807-40W T/R
BC807-40W T/R
NXP Semiconductors
Transistors Bipolar (BJT) TRANS GP TAPE-7
Data Sheet
Negotiable
BC807-40WT1G
BC807-40WT1G
ON Semiconductor
Transistors Bipolar (BJT) SS SC70 GP XSTR PNP 45V
Data Sheet
0-1: $0.05
1-25: $0.04
25-100: $0.04
100-250: $0.04
