Product Summary
The AT-41533-TR1 is a low noise NPN silicon bipolar transistor.
Parametrics
AT-41533-TR1 absolute maximum ratings: (1)VEBO, emitter-base voltage: 1.5V; (2)VCBO, collector-base voltage: 20V; (3)VCEO, collecotr-emitter voltage: 12V; (4)IC, collector current: 50mA; (5)PT, power dissipation: 225mW; (6)Tj, junction temperature: 150℃; (7)TSTG, storage temperature: -65 to 150℃.
Features
AT-41533-TR1 features: (1)General purpose NPN bipolar transistor; (2)900MHz performance; (3)Characterized for 3, 5, and 8 volt use; (4)SOT-23 and SOT-143 SMT Plastic packages; (5)Tape-and-reel packageing option available.

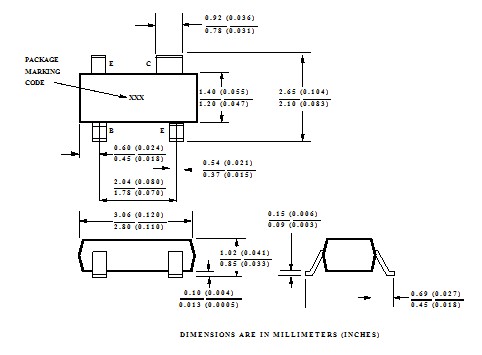

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT-41533-TR1 |
|
IC TRANS NPN GP BIPOLAR SOT-23 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
AT-41533-TR1G |
Avago Technologies |
Transistors Bipolar (BJT) Transistor Si |
Data Sheet |
|
|
||||||||||||
