Product Summary
The AP1084DG-13 is a 5A low dropout positive adjustable or fixed-mode regulator. It is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply.
Parametrics
AP1084DG-13 absolute maximum ratings: (1)Vin, DC Supply voltage: -0.3 to 12V; (2)TST, Storage temperature: -65 to +150℃; (3)TOP, operating junction temperature range: 0 to +125℃; (4)TM, maximum junction temperature: 150℃.
Features
AP1084DG-13 features: (1)1.4V maximum dropout at full load current; (2)Built-in thermal shutdown; (3)Output current limiting; (4)Adjustable output voltage or fixed 1.5V, 1.8V, 2.5V, 3.3V, 5.0V; (5)Fast transient response; (6)Good noise rejection; (7)Lead-free package: TO252-3L, TO263-3L, and TO220-3L; (8)Lead free finish/RoHS compliant for lead free.

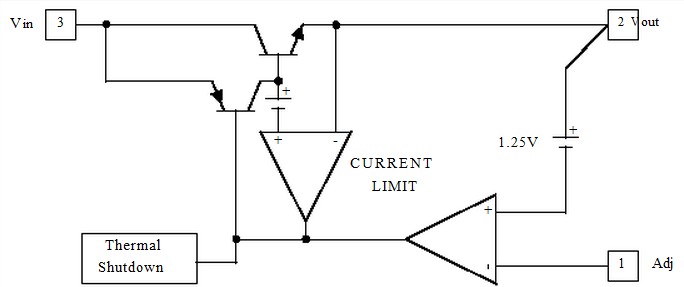

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

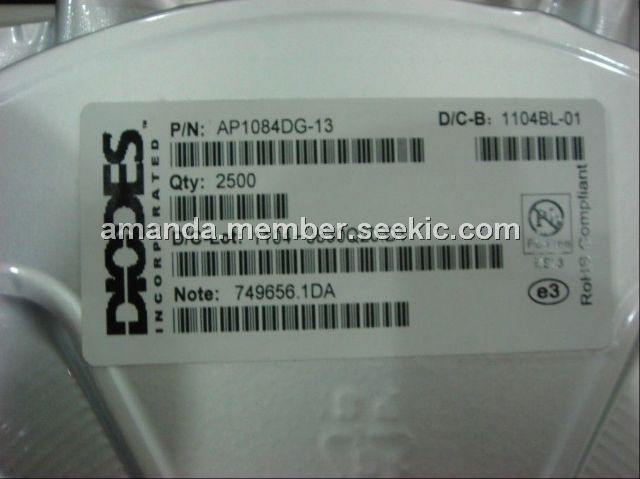

 AP1084DG-13 |
Diodes Inc. |
Low Dropout (LDO) Regulators LDO BIPOLAR 5.0A ADJUSTABLE REG |
Data Sheet |
|
|
||||||||||||||
