Product Summary
The AM27C010-70DI is a 1 Megabit, ultraviolet erasable programmable read-only memory. It is organized as 128K words by 8 bits per word, operates from a single +5 V supply, has a static standby mode, and features fast single address location programming. The AM27C010-70DI is available in windowed ceramic DIP packages, as well as plastic one time programmable (OTP) PDIP and PLCC packages. The AM27C010-70DI offers separate Output Enable (OE#) and Chip Enable (CE#) controls, thus eliminating bus contention in a multiple bus microprocessor system.
Parametrics
AM27C010-70DI absolute maximum ratings: (1)Storage Temperature: OTP Products:–65℃ to +125℃, All Other Products:–65℃ to +150℃; (2)Ambient Temperature with Power Applied:–55℃ to +125℃; (3)Voltage with Respect to VSS: All pins except A9, VPP , VCC:–0.6V to VCC+0.6V, A9 and VPP:–0.6V to 13.5V, VCC:–0.6V to 7.0V.
Features
AM27C010-70DI features: (1)Fast access time:Speed options as fast as 45 ns; (2)Low power consumption:20 μA typical CMOS standby current; (3)JEDEC-approved pinout; (4)Single +5 V power supply; (5)±10% power supply tolerance standard; (6)100% Flashrite programming: Typical programming time of 16 seconds; (7)Latch-up protected to 100 mA from –1V to VCC+1V; (8)High noise immunity; (9)Versatile features for simple interfacing: Both CMOS and TTL input/output compatibility, Two line control functions; (10)Standard 32-pin DIP, PDIP, and PLCC packages

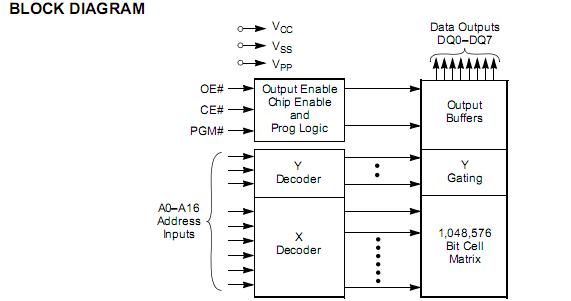

Diagrams
 |
