AD8314ARM

subsystem, MSOP-8, 5.5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~2.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~2.80

PartNumber:: AD8314ARM

Brand:: Analog Devices - ADI | Pack: MSOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CoCo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-19

From Other Seller

Part Number:AD8314ARM
US $2.50 - 2.80
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

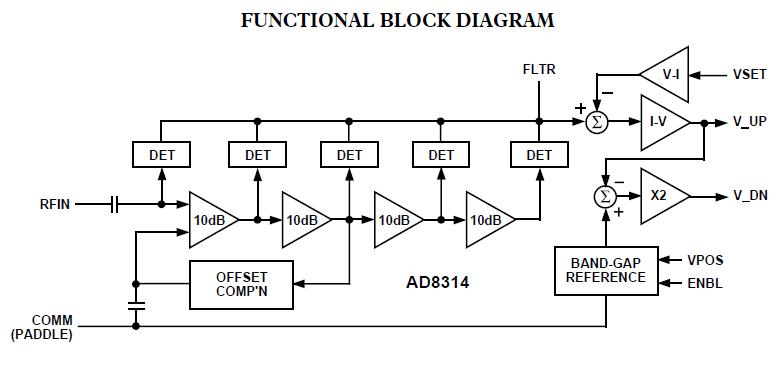

Product Summary

The AD8314ARM is a complete low-cost subsystem for the measurement and control of RF signals in the frequency range 0.1 GHz–2.5 GHz, with a typical dynamic range of 45 dB, intended for use in a wide variety of cellular handsets and other wireless devices. The AD8314ARM provides a wider dynamic range and better accuracy than possible using discrete diode detectors. In particular, its temperature stability is excellent over the full operating range of –30℃ to +85℃. The applications of the AD8314ARM include Cellular Handsets (TDMA, CDMA, GSM), RSSI and TSSI for Wireless Terminal Devices, Transmitter Power Measurement and Control.

Parametrics

AD8314ARM absolute maximum ratings: (1)Supply Voltage VPOS: 5.5 V; (2)V_UP, V_DN, VSET, ENBL: 0 V, VPOS; (3)Input Voltage: 1.6 V rms; (4)Equivalent Power: +17 dBm; (5)Internal Power Dissipation: 200 mW; (6)qJA: 200℃; (7)Maximum Junction Temperature: 125℃; (8)Operating Temperature Range: –30℃ to +85℃; (9)Storage Temperature Range: –65℃ to +150℃; (10)Lead Temperature Range (Soldering 60 sec): 300℃.

Features

AD8314ARM features: (1)Complete RF Detector/Controller Function; (2)Typical Range –58 dBV to –13 dBV, –45 dBm to 0 dBm re 50 Ω; (3)Frequency Response from 100 MHz to 2.5 GHz; (4)Temperature-Stable Linear-in-dB Response Accurate to 2.5 GHz; (5)Rapid Response: 70 ns to a 10 dB Step; (6)Low Power: 12 mW at 2.7 V; (7)Power-Down to 20 μA.
