AD8055AR

voltage feedback amplifier, 8-Pin SOIC, 13.2 V, Low Cost Single, 1.3W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.90~1.00

PartNumber:: AD8055AR

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. CoCo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-26

From Other Seller

Part Number:AD8055AR
US $0.90 - 1.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

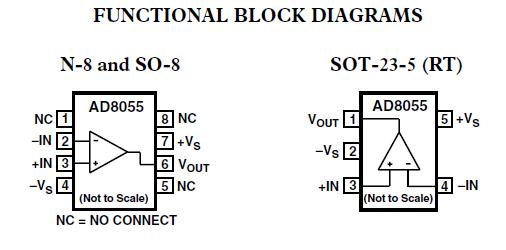

The AD8055AR voltage feedback amplifier offers bandwidth and slew rate typically found in current feedback amplifiers. Additionally, the AD8055AR is easy to use and available at a very low cost. Despite their low cost, it provides excellent overall performance. For video applications, the differential gain and phase error of AD8055AR are 0.01% and 0.02° into a 150 Ω load, and 0.02% and 0.1° while driving four video loads (37.5 Ω). The 0.1 dB flatness out to 40 MHz, wide bandwidth out to 300 MHz, along with 1400 V/μs slew rate and 20 ns settling time, make them useful for a variety of high speed applications.

Parametrics

AD8055AR absolute maximum ratings: (1)Supply Voltage: 13.2 V; (2)Internal Power Dissipation: Plastic DIP Package (N): 1.3W, Small Outline Package (R): 0.8W, SOT-23-5 Package (RT): 0.5 W, microSOIC Package (RM): 0.6 W; (3)Input Voltage (Common Mode): ±VS; (4)Differential Input Voltage: ±2.5 V; (5)Output Short Circuit Duration: Observe Power Derating Curves; (6)Storage Temperature Range N, R: –65℃ to +125℃; (7)Operating Temperature Range (A Grade): –40℃ to +85℃; (8)Lead Temperature Range (Soldering 10 sec): +300℃.

Features

AD8055AR features: (1)Low Cost Single (AD8055) and Dual (AD8056); (2)Easy to Use Voltage Feedback Architecture; (3)High Speed: 300 MHz, –3 dB Bandwidth (G = +1), 1400 V/μs Slew Rate, 20 ns Settling to 0.1%, Low Distortion: –72 dBc @ 10 MHz, Low Noise: 6 nV/√Hz, Low DC Errors: 5 mV Max VOS, 1.2 μA Max IB; (4)Small Packaging: AD8055 Available in SOT-23-5, AD8056 Available in 8-Lead microSOIC; (5)Excellent Video Specifications (RL = 150 Ω, G = +2): Gain Flatness 0.1 dB to 40 MHz, 0.01% Differential Gain Error, 0.02° Differential Phase Error, Drives Four Video Loads (37.5 Ω) with 0.02% and 0.1° Differential Gain and Differential Phase.
