Product Summary
The 2SA952-T is designed for use in output stage of portable radio and cassette type recorder, general purpose applications.
Parametrics
2SA952-T maximum ratings: (1)Storage temperature: -55 to +150℃; (2)Junction temperature: +150℃; (3)Total power dissipation: 600mW; (4)VCBO: -30 V; (5)VCEO: -25V; (6)VEBO: -5.0V; (7)Ic: -700mA; (8)IB: -150mA.
Features
2SA952-T features: (1)High total power dissipation PT=600mW; (2)High hFE and low VCE(sat) hFE(Ic=-100mA): 200 TYP; VCE(sat) (-700mA): -0.25V.

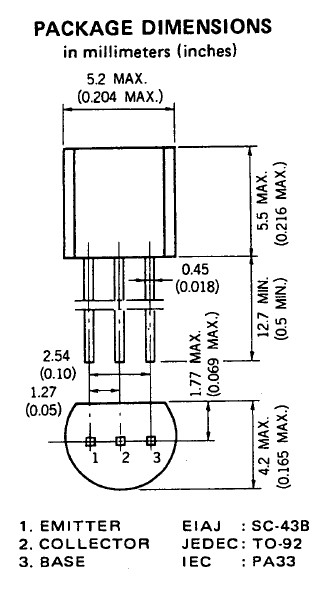

Diagrams
 |
