Product Summary
The TLE6232GP is a smart six channel low-side switch. Its applications include μC compatible power switch for 12V and 24V applications, switch for automotive and industrial system, solenoids, relays and resistive loads, robotic controls.
Parametrics
TLE6232GP absolute maximum ratings: (1)Supply voltage, VS: -0.3 to +7V; (2)Continuous drain source voltage, VDS: 45V; (3)Input voltage, all inputs and data lines, VIN: -0.3 to +7V; (4)Operating temprature range: -40 to 150℃; (5)Storage temperature range, Tstg: -55 to +150℃; (6)Output current per channel, ID: ID(lim)A.
Features
TLE6232GP features: (1)Short circuit protection up to 24V; (2)Over-temperature protection; (3)Over-voltage protection; (4)16 bit serial data input and diagnostic output; (5)Direct parallel control of all six channels for PWM applications; (6)General fault flag; (7)Low quiescent current; (8)Compatible with 3V micro controllers; (9)Electrostatic Discharge Protection; (10)Parallel inputs high or low active programmable.

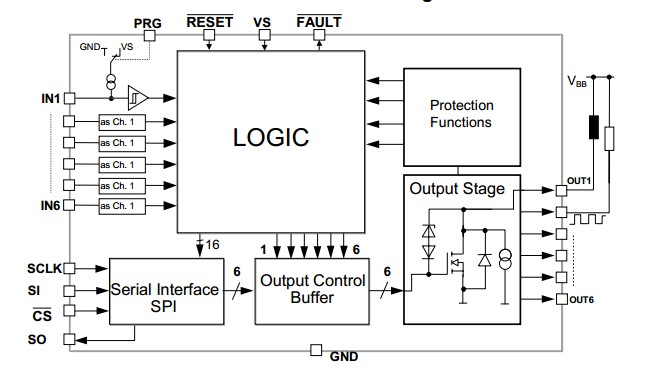

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLE6232GP |
Infineon Technologies |
Power Switch ICs - Power Distribution SMART 6 CHANNEL LW-SIDE SWITCH |
Data Sheet |
Negotiable |
|
||||||||||||
 |
TLE6232GPXT |
Infineon Technologies |
Power Switch ICs - Power Distribution Smart 6 Ch Peak/Hold Switch 4.5-5.5V |
Data Sheet |
|
|
||||||||||||
