Product Summary

The W241024AJ-15 is a high speed CMOS static ram.

Parametrics

W241024AJ-15 absolute maximum ratings: (1)Supply voltage to VSS potential: -0.5 to +7.0V; (2)Input/output to VSS potential: -0.5 to VDD+0.5V; (3)Allowable power dissipation: 1W; (4)Storage temperature: -65 to +150℃; (5)Operating temperature: 0 to +70℃.

Features

W241024AJ-15 features: (1)High speed access time; (2)Low power consumption; (3)Single +5V power supply; (4)Fully static operation; (5)All inputs and outputs directly TTL compatible; (6)Three-state outputs.

Diagrams

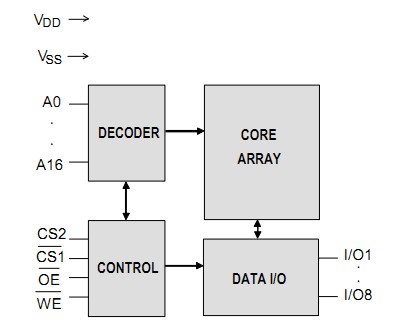

W241024AJ-15 block diagram
