Product Summary

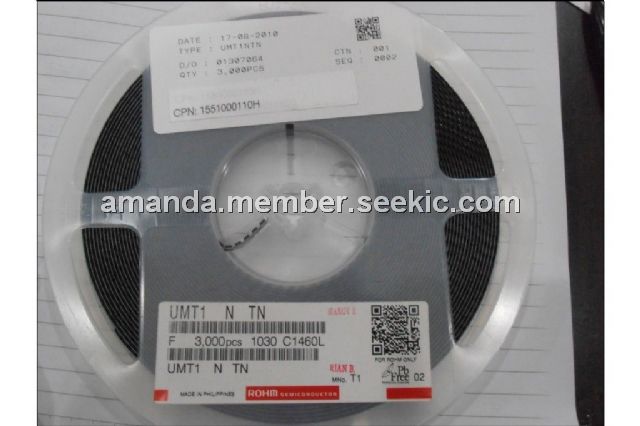

The UMT1 is a general purpose transistor.
Parametrics
UMT1 absolute maximum ratings: (1)Collector-base voltage, VCBO: -15V; (2)Collector-emitter voltage, VCEO: -12V; (3)Emitter-base voltage, VEBO: -6V; (4)Collector current, IC: -500mA; ICP: 1.0A; (5)Power dissipation, PC: 150mW; (6)Junction temperature, Tj: 150℃; (7)Storage temperature, Tstg: -55 to +150℃.
Features
UMT1 features: (1)Two 2SA2018 chips in a EMT package; (2)Mounting possible with EMT3 or UMT3 or SMT3 automatic mounting machines; (3)Transistor elements are independent, eliminating interference.
Diagrams
