Product Summary

Dedicated to dataline protection, the TPN3021RL provides a triple protection function. The TPN3021RL ensures the same protection capability with the same breakdown voltage both in common mode and in differential mode. With a stand-off voltage of 28V and a very low capacitance, the TPN3021RL is able to protecthigh-speed interfaces such as T1/E1 interface.

Parametrics

TPN3021RL absolute maximum ratings: (1)Ipp Peak pulse current: 10/1000 ms, 30A; 8/20 ms, 150A; (2)Tstg Storage temperature range: - 40 to + 150℃; (3)Tj Maximum junction temperature: 150℃; (4)TL Maximum lead temperature for soldering during 10s 260℃.

Features

TPN3021RL features: (1)Triplecrowbar protection; (2)Peakpulsecurrent: IPP = 30A, 10/1000ms; (3)Verylow capacitance: C = 30 pF; (4)Protects high-speed line drivers/receivers.

Diagrams

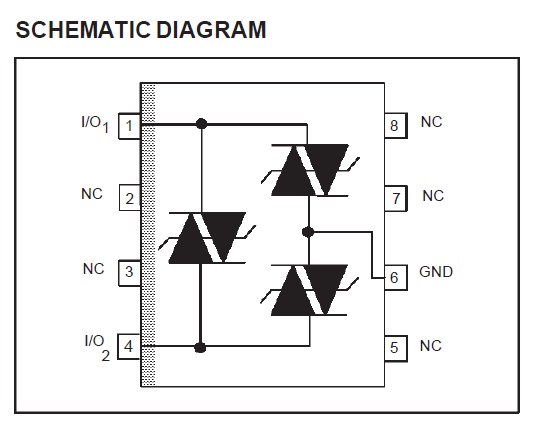

TPN3021RL schematic diagram
