Product Summary

The S-817A35ANB-CUYT2G is a super-small package COMS voltage regulator. Its applications include power source for battery-powered devices, personal communication devices, home electric/electronic appliances.

Parametrics

S-817A35ANB-CUYT2G absolute maximum ratings: (1)Input voltage, VIN: VSS-0.3 to VSS+12V; (2)Output voltage, VOUT: VSS-0.3 to VIN+0.3V; (3)Power dissipation, PD: 250m/W; (4)Operating temperature range, Topr: -40 to +85℃; (5)Storage temperature, Tstg: -40 to +125℃.

Features

S-817A35ANB-CUYT2G features: (1)Ultra-low current consumption; (2)Output voltage; (3)Output voltage accuracy: ±2%; (4)Output current: 50mA; (5)Dropout voltage: 160mV; (6)Low ESR capacitor ceramic capacitor of 0.1uF or more can be used as an output capacitor; (7)Excellent line regulation; (8)Lead-free product.

Diagrams

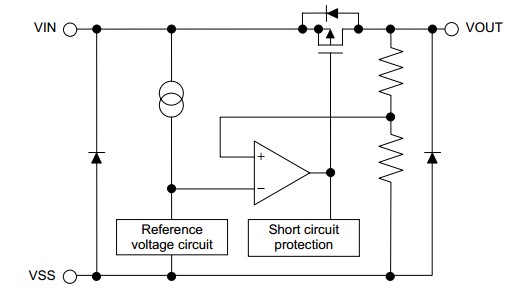

S-817A35ANB-CUYT2G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S-817A35ANB-CUYT2G
S-817A35ANB-CUYT2G
Seiko Instruments
Low Dropout (LDO) Regulators 3.5V 1.2uA 2.0%
Data Sheet
Negotiable
